Our manufacturer direct sales of different specifications, sizes, colors

of the hdpe sheet/ hdpe rod /hdpe tubes.

pe / ldpe / hdpe / polyethylene / uhmwpe sheet rod tube and product.

一、Common specifications include:

Color：Natural、White、Black、Green、Blue、Yellow、Gray and so on.

Sheet Size: 1000X2000X(Thickness:1-300mm）、1030X2270X(Thickness:1-300mm)

1250X3130X(Thickness:1-300mm）、1250X4250X(Thickness:1-300mm)

1500X3000X(Thickness:1-300mm）、2030X8200X(Thickness:1-300mm)

Rod Size: Φ10-Φ500X1000mm

Tube Size: (OD)30-1200 X (ID)10-1100 X Length(1000-2000mm)

Different specifications of hdpe rod tube can also be customized

二、Introduction to ultra-high molecular weight polyethylene:

UHMW-PE（Ultra high Molecular Weight Polyethylene ）is a thermoplastic engineering plastic with

the average molecular weight more than 9.0 million.

(PE only has the molecular weight between twenty to two hundred thousand.)

This kind of material with five top performance of high-wear-resistance, good-chemical resistance,

low-temperature resistance, self-lubrication and high-impact resistance,

which is regarded as a “surprised” engineering plastic of excellent comprehensive capacity and competitive price.

Main characteristics:

1. Very high-wear resistance, seven times wear resistance than steel, four times than PTFE

2. Very high anti-impact resistance, two times impact resistance than PC, five times than ABS.

3. Good self-lubrication, the same as PTFE, better than steel and brass appended lubricating oil.

4. Good anti-corrosion resistance, it has very stable chemicals property and can endure the corrosion

of all kinds of corrosive medium and organic solvent in certain rang of temperature and humidity.

5. Very high-inadhesion resistance, the surface of product hardly affixes other material.

6. Very high-impact resistance, ten times impact resistance than PA66, eight times than PTFE.

7. Good low temperature resistance, in liquefied nitrogen (- 196℃), it still has the prolongation.

few other materials can reach to this performance.

8. Non-toxic and clean property, UHMW-PE, which is the material that Food and Drug Administration

(FDA) and United States Department of Agriculture (ASDA) permit to apply in food and medicine fields.

三、UHMW-PE Application:

1. Paper making industry: with its performance of high wear resistance and good self-lubrication,

can be used in: vacuum box panel, dehydration plank, drawknife, pressurize assembly,

shaft sleeve of paper-cutting machine and so on. The thickness of UHMW-PE tube below 10mm,

can be made into covering tube of strap transport and transcribing machine roller.

2. Food and beverage light industry: with its performance of high wear resistance, anti-impact resistance,

inadhesion resistance, non-toxic and clean property, can be manufactured: moving plate, transport screw,

gear and so on, which is easy-cleaning, long-enduring, and anti-mildew,and be used in other clear parts.

3. Waste-water industry:

Polluting mud、scraping plate of helix transport、slurry pump impeller、pump bearing bush、grit collection system、

defecator gear、precipitation pool scaleboard and so on.

4. Electronic Industry: Surface dealing of semiconductor process, air-pollution control system,

waste-water vent control and so on. UHMW-PE, has the excellent Performance of low-temperature resistance,

which has a good ductibility in the Liquefied helium (-269℃), was started to apply in the refrigeration technology

and low-temperature field. The latest UHMW-PE tube can be applied in semiconductor field instead of

a great deal of PTFE tubes.

5.Textile industry: With its performance of high-wear resistance, anti-impact and good self-lubrication,

the products,such as: strap knot, gear, cushion baffle, bearing bush and so on.

6. Sport and amusement industry: ski tools lining, assembly of track vehicle in ice and snow,

earth plate of glider plane, assembly of steel ball equipment, shaft sleeve of all size, rolling ball path,

accessory of mechanization sledge and so.

7. Medical industry: Body embedded substance, artificial joints, rectifying surgical machine and bracket,

orientation rack of surgical machine.

8. Chemical and other industry: galvanization hardware, agricultural machine, shipping parts,

mechanical parts of low-temperature atomic energy and so on. Mostly using of its high-wear resistance,

high anti-impact resistance, anti-cold resistance, self-lubrication, electric characteristic.

9. Electronic Industry: Surface dealing of semiconductor process, air-pollution control system,

waste-water vent control and so on.

UHMW-PE, has the excellent Performance of low-temperature resistance, which has a good ductibility

in the Liquefied helium (-269℃), was started to apply in the refrigeration technology and low-temperature field.

The latest UHMW-PE tube can be applied in semiconductor field instead of a great deal of PTFE tubes.

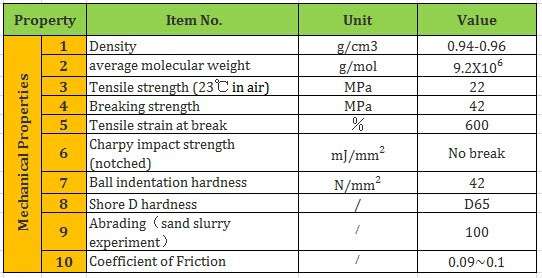

四、The Main Properties of UHMW-PE

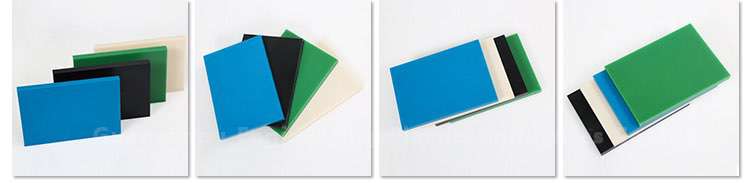

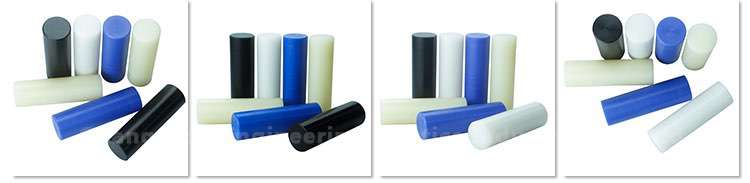

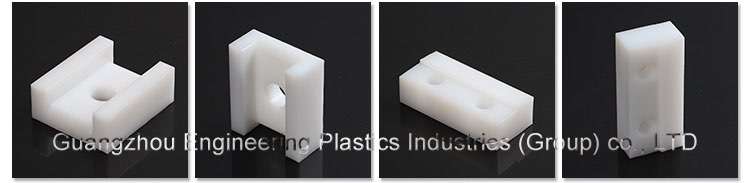

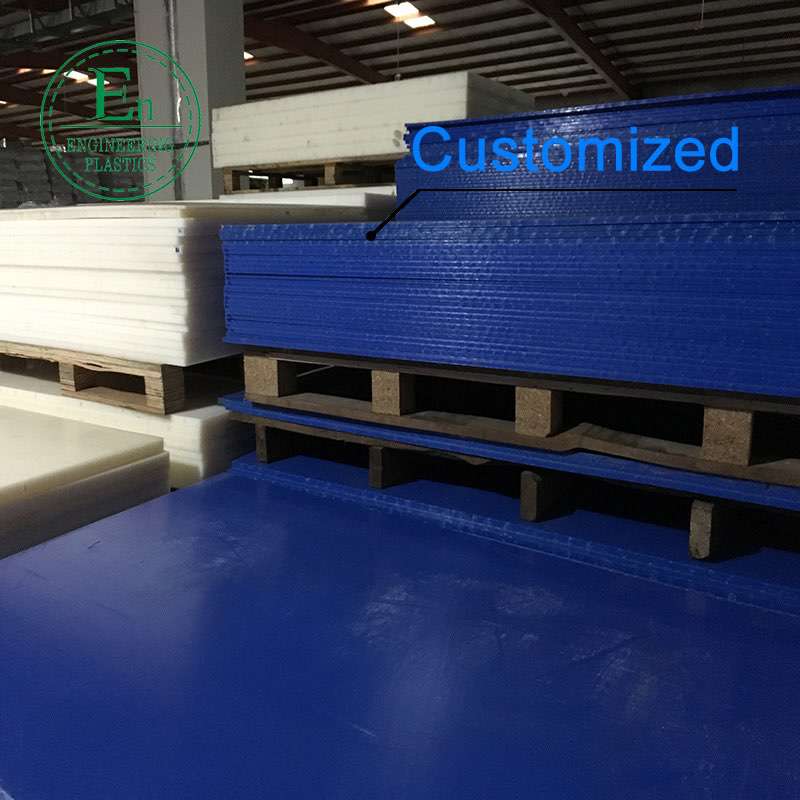

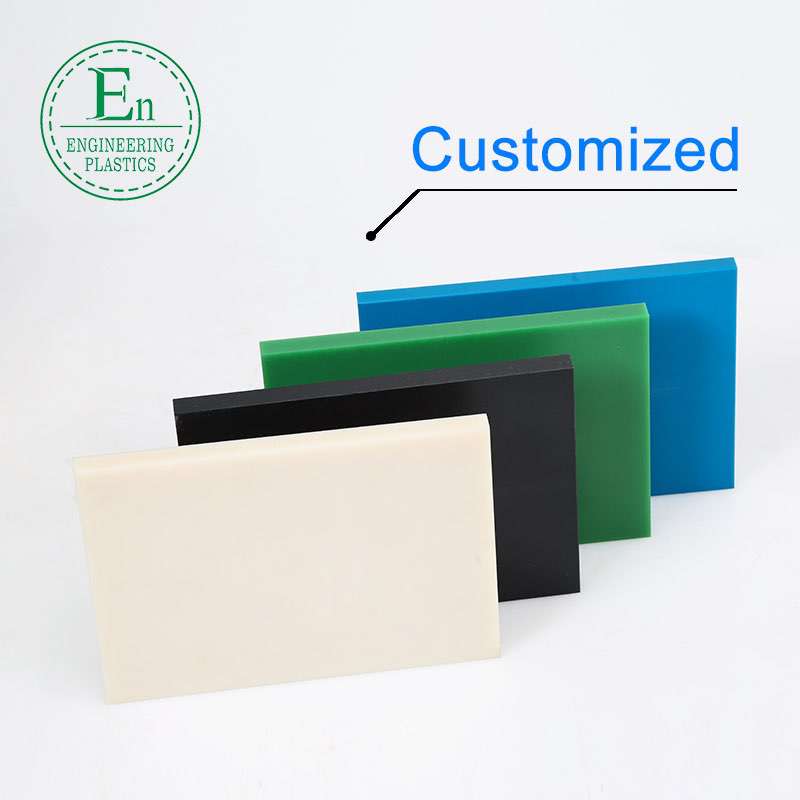

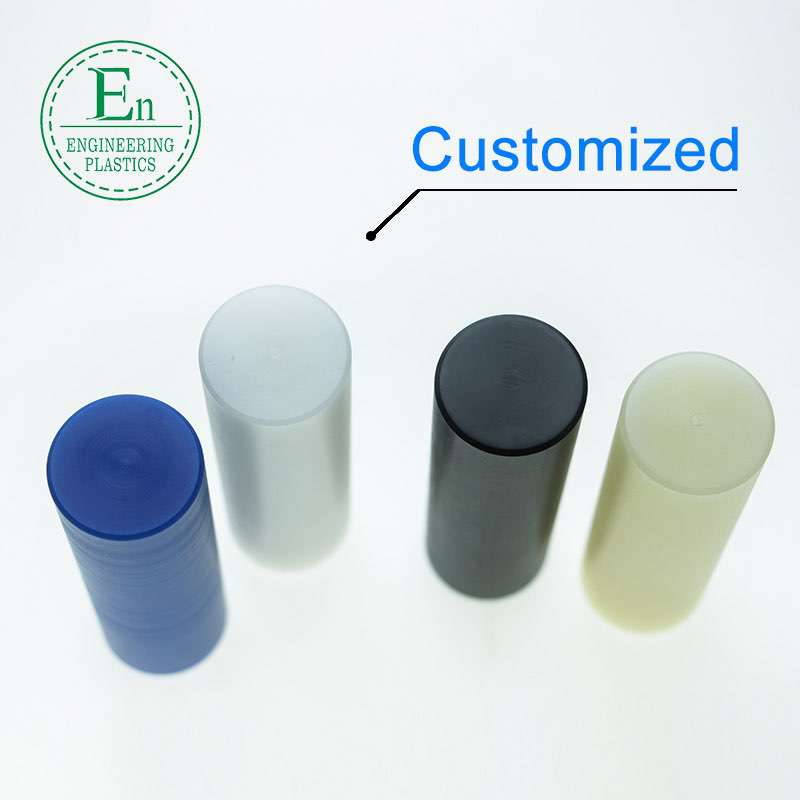

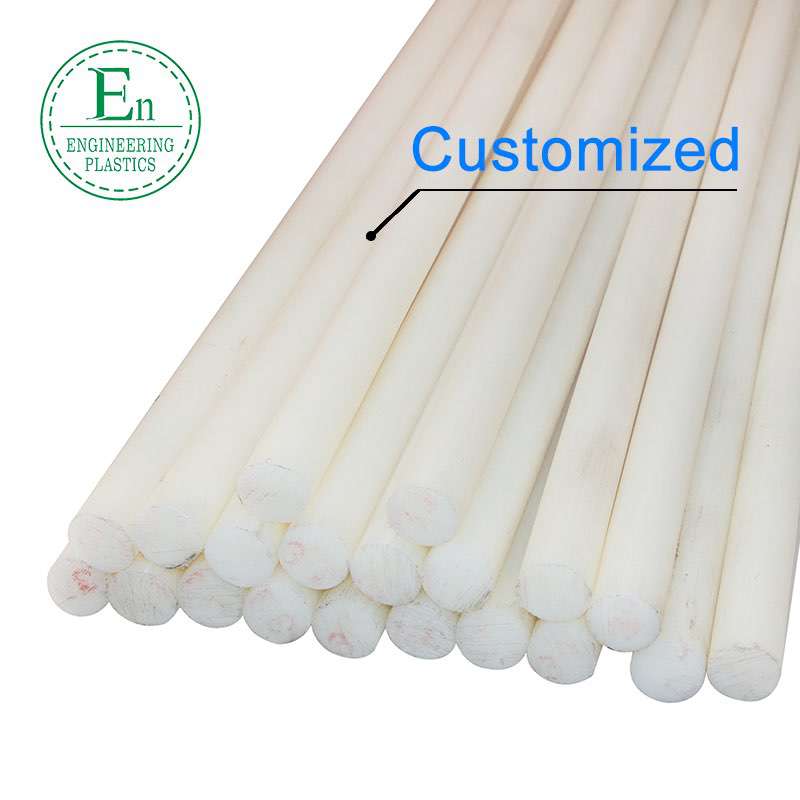

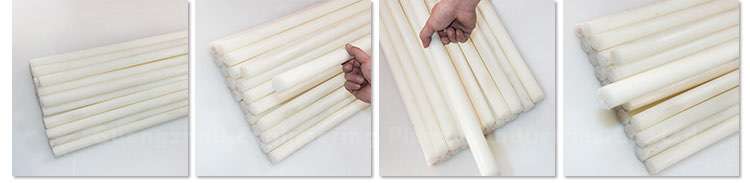

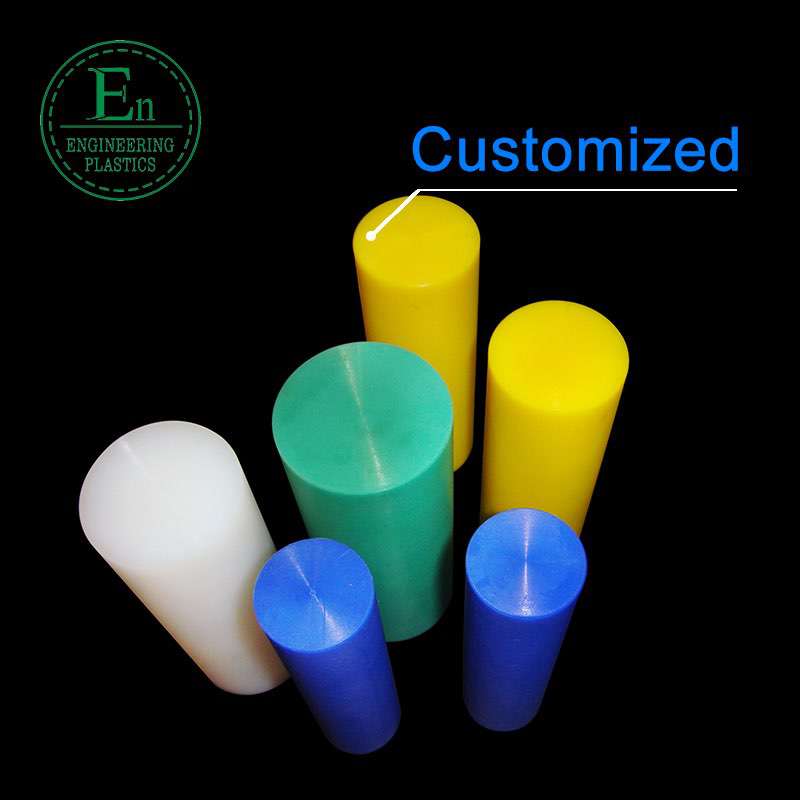

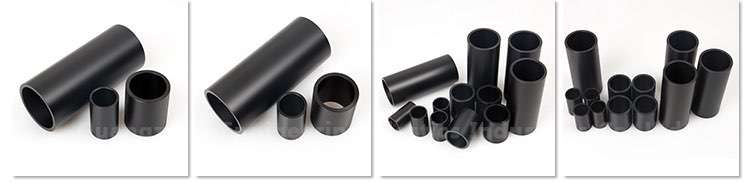

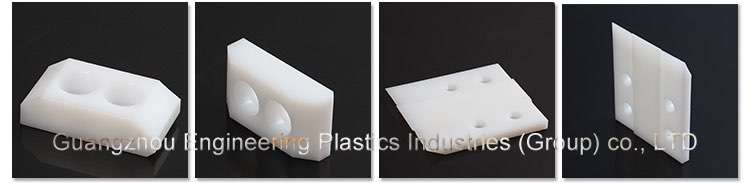

五、Product show
