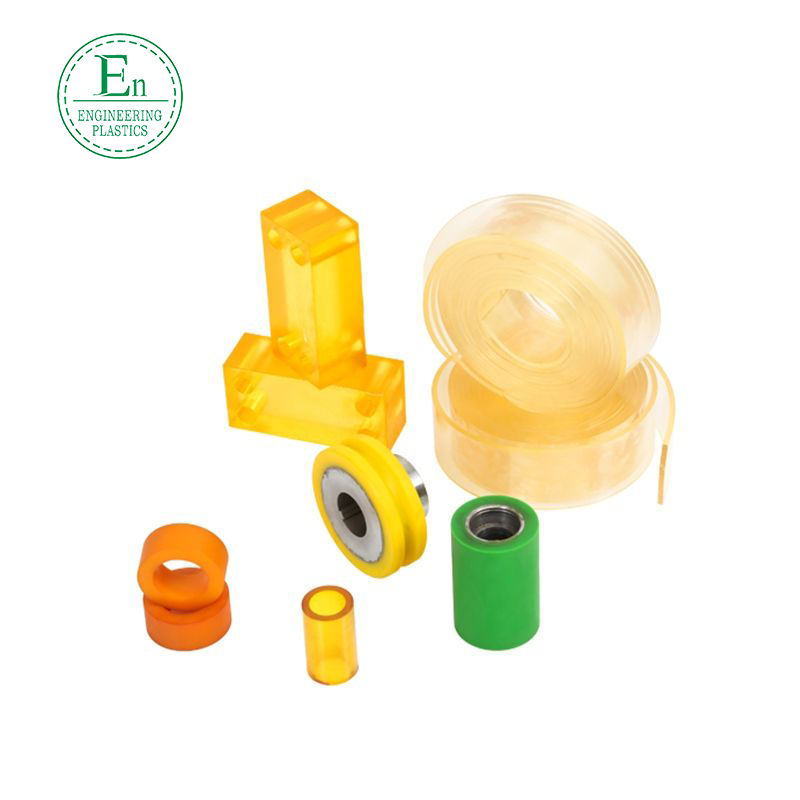

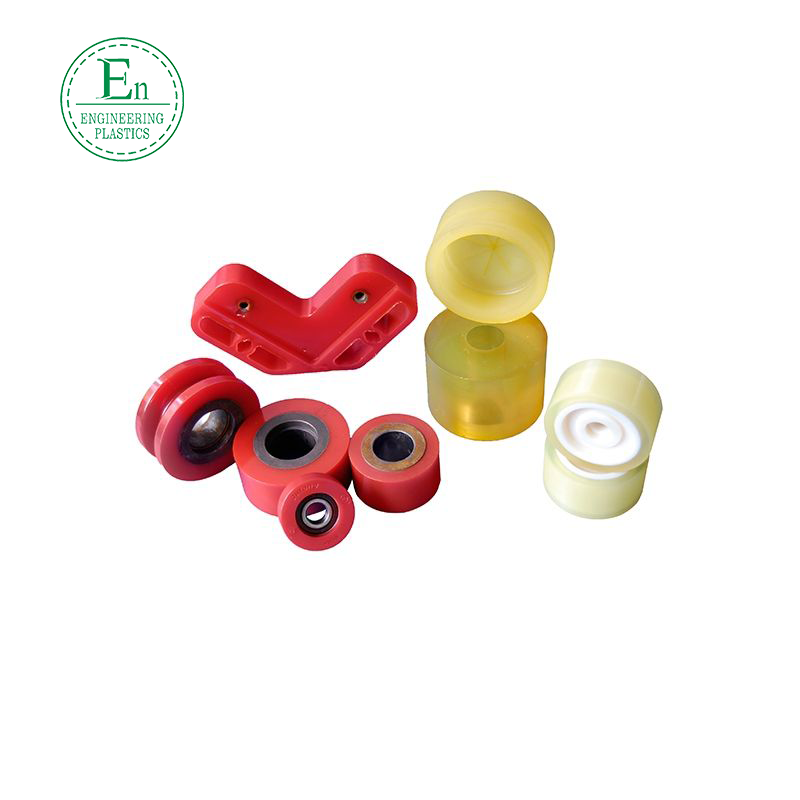

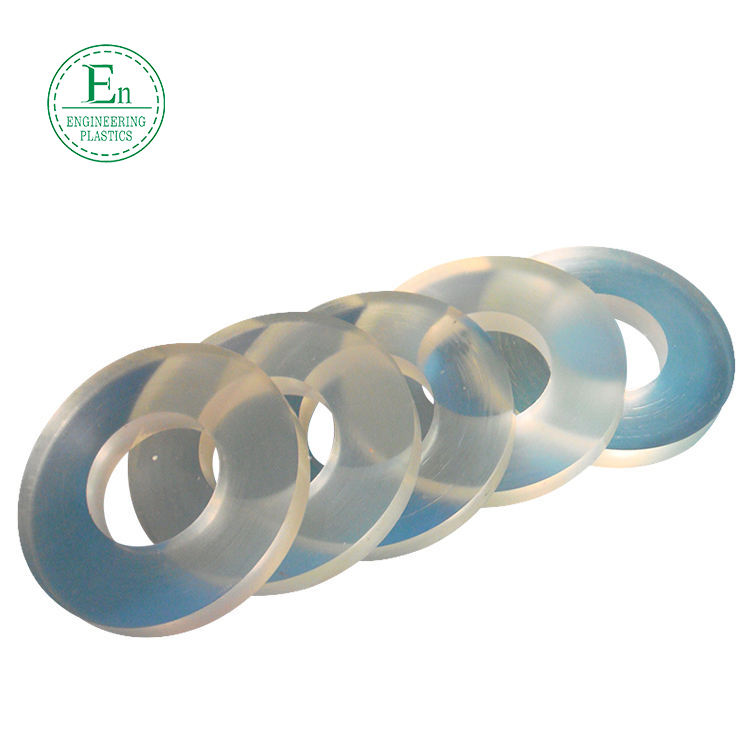

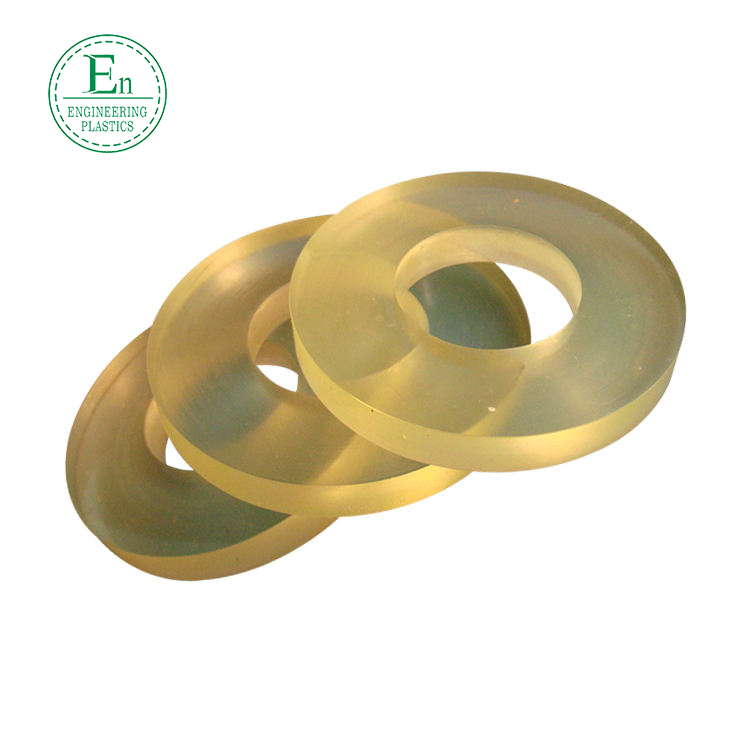

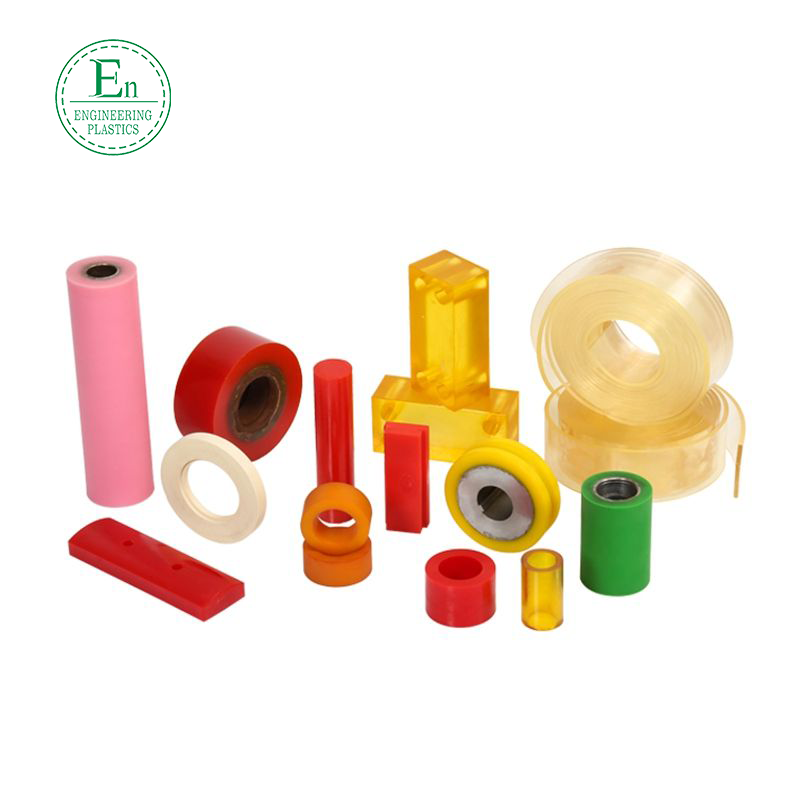

High quality wear resistance polyurethane / PU sheet rod and tube

Polyurethane is a new organic polymer material, known as "the fifth largest plastics", which is widely used in

many fields of national economy because of its excellent performance. Polyurethane sheet, rod and tube is

extremely abrasion resistant and can be custom cast in a wide range of sizes, shore hardnesses and colours.

PAR Group also have the capability to machine Polyurethane utilising highly advanced in-house CNC technology.

The following are the standard sizes available with many more available upon request.

Key Features of PU rod sheet tube

1. Temperature: -30°C to +80°C (+100°C short term).

2. Higher temperatures can be manufactured upon request.

3. Abrasion resistance

4. High elasticity

5. Mechanical intensity

6. Oil and water resistance

7. Good resistance to oxidation and heat

8. Sock absorption

9. Electrical insulation properties

10. Low compression set

Properties of PU rod sheet tube

1. Material: Cast with 100% virgin polyether or polyester, extrude with 100% virgin TPU

2. Color: Transparent, yellow, orange, red, blue, black, white etc

3. Surface: Smooth/smooth

4. Tensile strength: 25-55Mpa

5. Elasticity impact: >25%

6. Hardness: 60-95 shore A

7. Elongation: 400%-650%

8. Density: 1.12-1.25g/cm3

9. Tear strength: 35-155KN/m

10. Akron abrasion loss: <0.05cm3/1.61km

11. Compression set (22h*70° C): <10%

12. Working temperature: 120° C

Application of PU sheet rod tube

1. Applied to machine parts

2. Wheel of clay machine

3. Sleeve bearing

4. Conveyor roller and so on

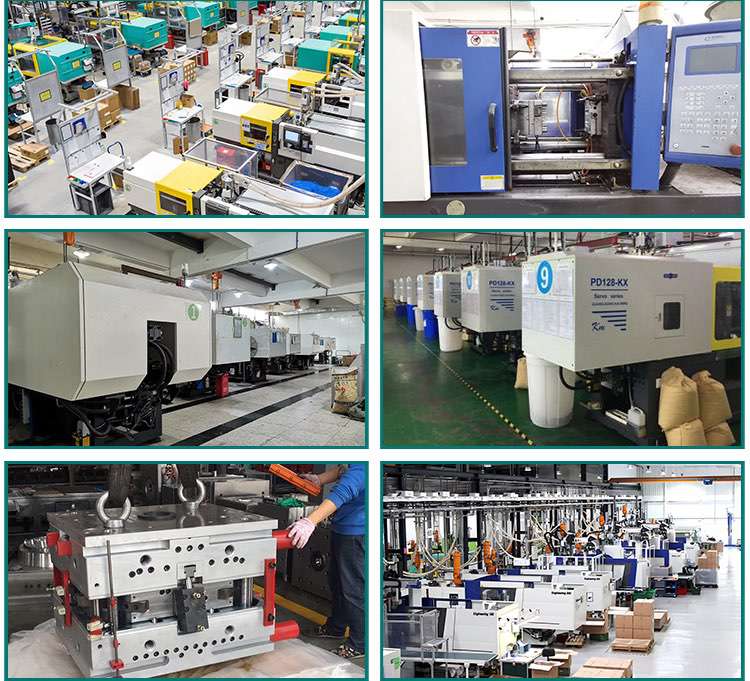

For injection molding, the products will be sent for 15 days. And we support OEM and ODM.
