Home ProductsHigh performance Engineering plasticsPEEK

Features:

1. Excellent strength, and stiffness up to 500°F (260°C)

2. Low coefficient of friction and high wear resistance
3. Chemically resistant to common chemicals
4. Low out gassing, low particle generation and inherent purity
5. Unique physical, thermal & electrical properties

  • Peek Makers Plastic Manufacturers Plastic Medical Parts Custom Injection Molds Peek Parts
  • Peek Makers Plastic Manufacturers Plastic Medical Parts Custom Injection Molds Peek Parts
  • Peek Makers Plastic Manufacturers Plastic Medical Parts Custom Injection Molds Peek Parts
  • Peek Makers Plastic Manufacturers Plastic Medical Parts Custom Injection Molds Peek Parts
  • Peek Makers Plastic Manufacturers Plastic Medical Parts Custom Injection Molds Peek Parts
  • Peek Makers Plastic Manufacturers Plastic Medical Parts Custom Injection Molds Peek Parts
向上
向下

Peek Makers Plastic Manufacturers Plastic Medical Parts Custom Injection Molds Peek Parts

  • MOQ :200PCS

  • Method :Normal plastic injection

  • Drawing Format :2D/(PDF/CAD)3D(IGES/STEP)

  • Mold Life :200,000~1,000,000 shots,or accordign customer requirement

  • Thickness :1-20MM

  • Type :Plastics injection

  • Service :Offer Customized

  • Product description:

            Customized Service   Product Description PEEK(Polyetheretherketone)is a kind of heat-resistant, high performance thermoplastic special engineering plastics. It has good mechanical

Related Products:

Similar items

read more

  • Details



Peek Makers Plastic Manufacturers Plastic Medical Parts Custom Injection Molds Peek PartsPeek Makers Plastic Manufacturers Plastic Medical Parts Custom Injection Molds Peek Parts
Peek Makers Plastic Manufacturers Plastic Medical Parts Custom Injection Molds Peek PartsPeek Makers Plastic Manufacturers Plastic Medical Parts Custom Injection Molds Peek Parts








Customized Service


Peek Makers Plastic Manufacturers Plastic Medical Parts Custom Injection Molds Peek Parts





Product Description



PEEK(Polyetheretherketone)is a kind of heat-resistant, high performance thermoplastic special engineering plastics. It has good mechanical properties and chemical resistance, abrasion resistance, and hydrolysis resistance properties etc.; it has a light proportion and self-lubricating properties.

Peek Makers Plastic Manufacturers Plastic Medical Parts Custom Injection Molds Peek Parts



1. Excellent dimensional stability

2. Low coefficient of linear thermal expansion

3. Good mechanical properties at elevated temperatures

4. Good resistant to hot water and steam

5. Bearing grade PEEK has excellent wear characteristics

6. UL 94 V-0 flammability rating (0.059" thickness)


Peek Makers Plastic Manufacturers Plastic Medical Parts Custom Injection Molds Peek Parts



7. Very low smoke and toxic gas emissions when exposed to flame

8. Outstanding mechanical properties even at high temperatures
9.Optimized balance of stiffness, tensile strength and impact strength.

10.Continuous operating temperature up to + 260°C and briefly even up to +300°C.





GuangZhou Engineering Plastics Industries (Group) Company, has studied and applied this material in many industries for many years. Due to very good processing properties, it can be filled with carbon fiber, Fiberglass and MoS2 etc. In order to improve lubrication performance and mechanical strength further.



1.PEEK-1000 This general purpose grade is unreinforced and offers the highest elongation and toughness of all PEEK grades. The newly available black PEEK 1000 is ideal for instrument components where aesthetics are important, as well as for seal components where ductility and inertness are important.

2.PEEK-HPV Carbon fiber reinforced with graphite and PTFE lubricants,our newest grade of PEEK offers the lowest coefficient of friction and the best machinability for all PEEK grades. Anexcellent combination of low friction,low wear,high LPV,low mating part wear and easy machining,make it ideal for aggressive service bearings.

3.PEEK-GF30 The addition of glass fibers significantly reduces the expansion rate and increases the flexural modulus of PEEK. This grade is ideal for structural applications that require improved strength, stiffness or stability,especially at temperatures above 300°F (150°C).

4. PEEK-CA30 The addition of carbon fibers enhances the compressive strength and stffness of PEEK, and dramatically lowers its expansion rate. It offers designers optimum wear resistance and load carrying capability in a PEEK-based product. This grade provides more thermal conductivity than unreinforced PEEK - increasing heat dissipation from bearing surfaces improving bearing life and capability.





NO.

Item no.

Unit

PEEK-1000

PEEK-CA30

PEEK-GF30

1

Density

g/cm3

1.31

1.41

1.51

2

Water absorption(23ºC in air)

%

0.20

0.14

0.14

3

Tensile strength

MPa

110

130

90

4

Tensile strain at break

%

20

5

5

5

Compressive stress

(at 2% nominal strain)

MPa

57

97

81

6

Charov impact strength(unnotched)

KJ/m2

No break

35

35

7

Charov impact strength(notched)

KJ/m2

3.5

4

4

8

Tensile modulus of elasticity

MPa

4400

7700

6300

9

Ball indentation hardness

N/mm2

230

325

270

10

Rockwell hardness

--

M105

M102

M99

Color:Natural,Black,Khaki and so on.

PEEK Sheet Size: 500X1000X(Thickness:1-500mm),620X1000X(Thickness:1-500mm) PEEK Rod Size: Φ6-Φ200X3000mm

PEEK Tube Size: (OD)30-600X (ID)20-500X length(500-3000mm)

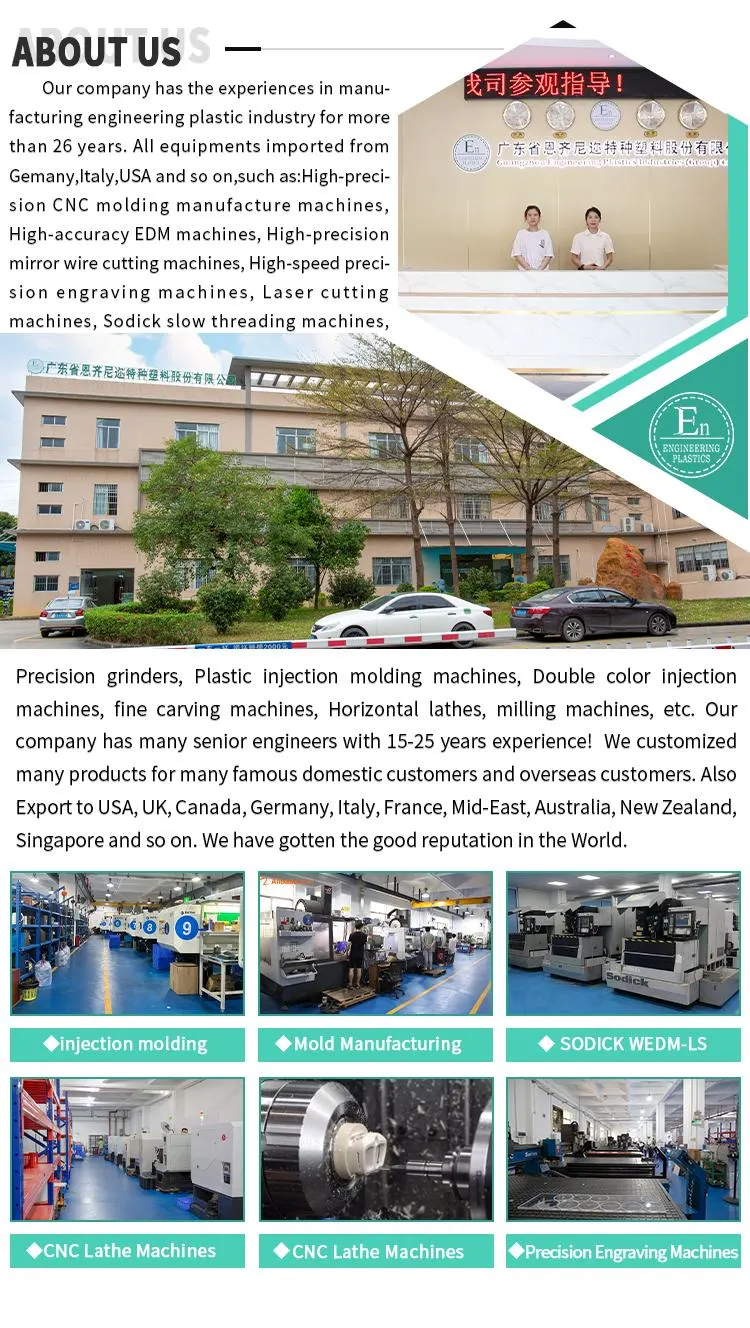

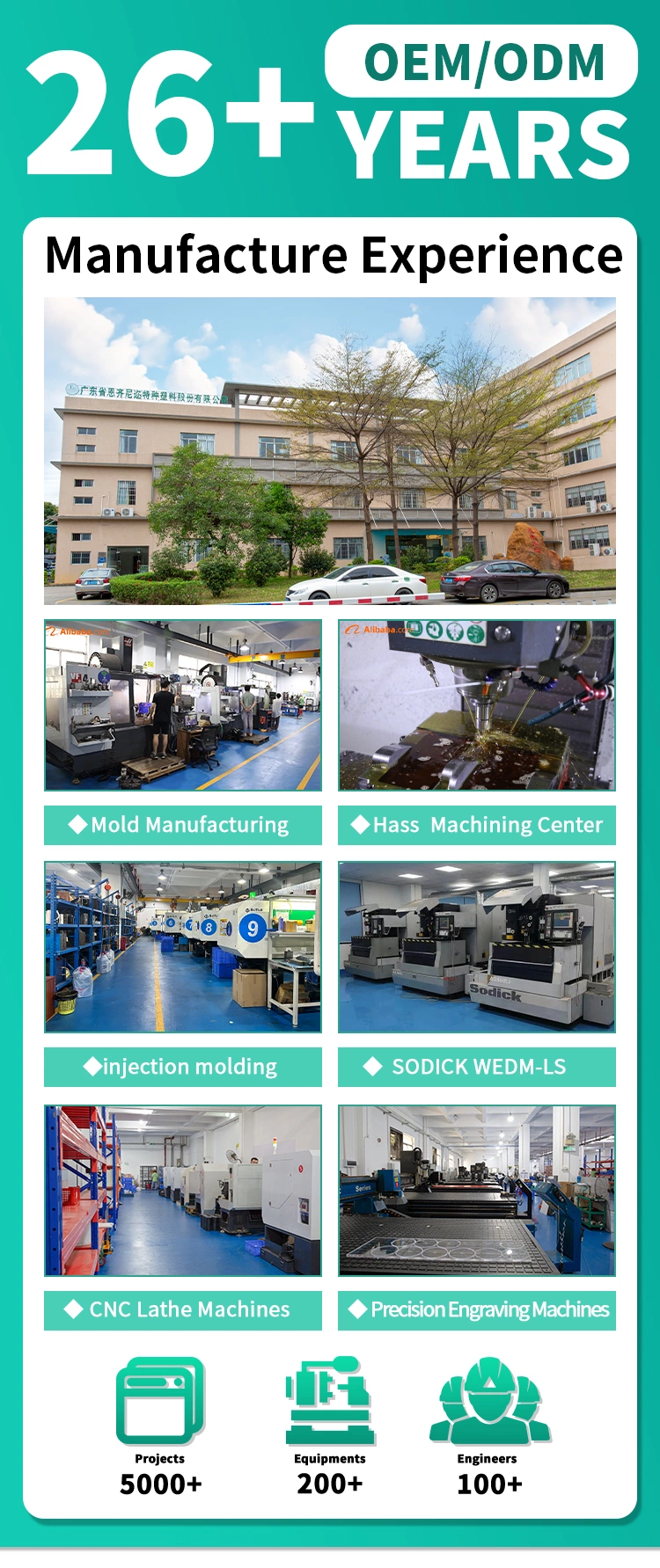

Our Factory


Peek Makers Plastic Manufacturers Plastic Medical Parts Custom Injection Molds Peek Parts



Certification

Companies strictly enforce the ISO9001(2008)international quality certification system, the product quality conforms to the eu RoHS standard.

Peek Makers Plastic Manufacturers Plastic Medical Parts Custom Injection Molds Peek Parts

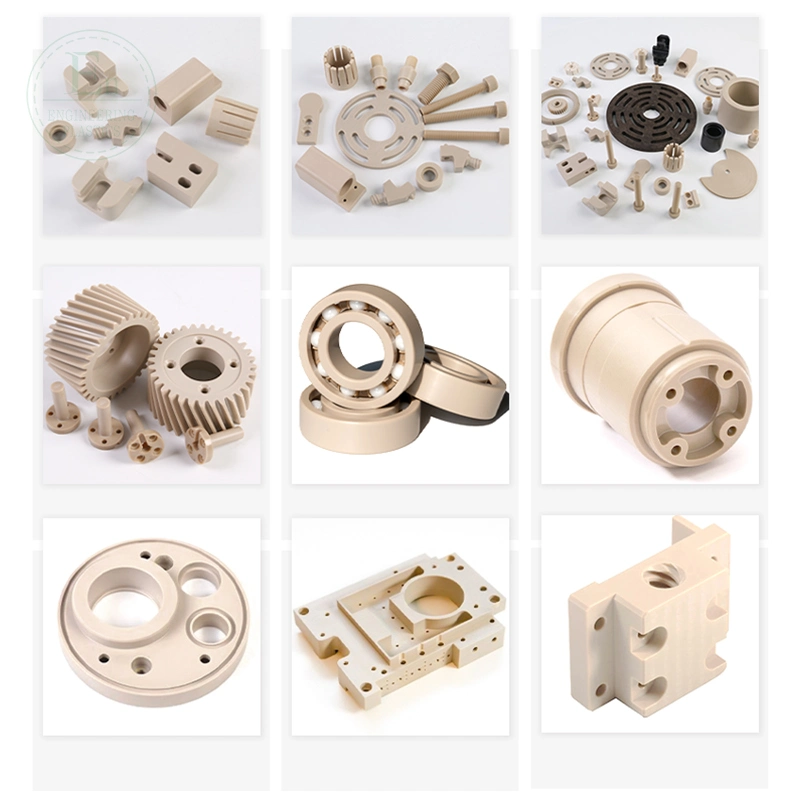

Application Area

1. Seals, Gears, Fittings.
2. Electrical components.
3. Medical instrument parts.
4. Aerospace parts, Valve Seats.
5. Semiconductor machinery components.
6. Food processing machinery components.
7. Bearings and bushings (bearing grade PEEK).
8. Pump and valve components, Wafer Carriers, Piston Rings.
