  GuangZhou Engineering Plastics Industries (Group) Company, has studied and applied this material in many industries for many years. Due to very good processing properties, it can be filled with carbon fiber, Fiberglass and MoS2 etc.

Home ProductsHigh performance Engineering plasticsPEEK

Features:

1. Excellent strength, and stiffness up to 500°F (260°C)

2. Low coefficient of friction and high wear resistance
3. Chemically resistant to common chemicals
4. Low out gassing, low particle generation and inherent purity
5. Unique physical, thermal & electrical properties

  • OEM Customer Made Peek1000 Products Parts Service Manufacturer Plastic Peek-GF30 Injection Molding Part
  • OEM Customer Made Peek1000 Products Parts Service Manufacturer Plastic Peek-GF30 Injection Molding Part
  • OEM Customer Made Peek1000 Products Parts Service Manufacturer Plastic Peek-GF30 Injection Molding Part
  • OEM Customer Made Peek1000 Products Parts Service Manufacturer Plastic Peek-GF30 Injection Molding Part
  • OEM Customer Made Peek1000 Products Parts Service Manufacturer Plastic Peek-GF30 Injection Molding Part
  • OEM Customer Made Peek1000 Products Parts Service Manufacturer Plastic Peek-GF30 Injection Molding Part
向上
向下

OEM Customer Made Peek1000 Products Parts Service Manufacturer Plastic Peek-GF30 Injection Molding Part

  • size :custom

  • tolerance: +/-0.05MM

  • Certificate:

  • application :industry

  • free sample :Available

  • Product description:

      GuangZhou Engineering Plastics Industries (Group) Company, has studied and applied this material in many industries for many years. Due to very good processing properties, it can be filled with carbon fiber, Fiberglass and MoS2 etc.

Related Products:

Similar items

read more

  • Details



GuangZhou Engineering Plastics Industries (Group) Company, has studied and applied this material in many industries for many years. Due to very good processing properties, it can be filled with carbon fiber, Fiberglass and MoS2 etc. In order to improve lubrication performance and mechanical strength further.



1.PEEK-1000 This general purpose grade is unreinforced and offers the highest elongation and toughness of all PEEK grades. The newly available black PEEK 1000 is ideal for instrument components where aesthetics are important, as well as for seal components where ductility and inertness are important.

2.PEEK-HPV Carbon fiber reinforced with graphite and PTFE lubricants,our newest grade of PEEK offers the lowest coefficient of friction and the best machinability for all PEEK grades. Anexcellent combination of low friction,low wear,high LPV,low mating part wear and easy machining,make it ideal for aggressive service bearings.

3.PEEK-GF30 The addition of glass fibers significantly reduces the expansion rate and increases the flexural modulus of PEEK. This grade is ideal for structural applications that require improved strength, stiffness or stability,especially at temperatures above 300°F (150°C).

4. PEEK-CA30 The addition of carbon fibers enhances the compressive strength and stffness of PEEK, and dramatically lowers its expansion rate. It offers designers optimum wear resistance and load carrying capability in a PEEK-based product. This grade provides more thermal conductivity than unreinforced PEEK - increasing heat dissipation from bearing surfaces improving bearing life and capability.



NO.

Item no.

Unit

PEEK-1000

PEEK-CA30

PEEK-GF30

1

Density

g/cm3

1.31

1.41

1.51

2

Water absorption(23℃ in air)

%

0.20

0.14

0.14

3

Tensile strength

MPa

110

130

90

4

Tensile strain at break

%

20

5

5

5

Compressive stress

(at 2% nominal strain)

MPa

57

97

81

6

Charov impact strength(unnotched)

KJ/m2

No break

35

35

7

Charov impact strength(notched)

KJ/m2

3.5

4

4

8

Tensile modulus of elasticity

MPa

4400

7700

6300

9

Ball indentation hardness

N/mm2

230

325

270

10

Rockwell hardness

--

M105

M102

M99

Color:Natural、Black、Khaki and so on.

PEEK Sheet Size: 500X1000X(Thickness:1-500mm)、620X1000X(Thickness:1-500mm) PEEK Rod Size: Φ6-Φ200X3000mm

PEEK Tube Size: (OD)30-600X (ID)20-500X length(500-3000mm)

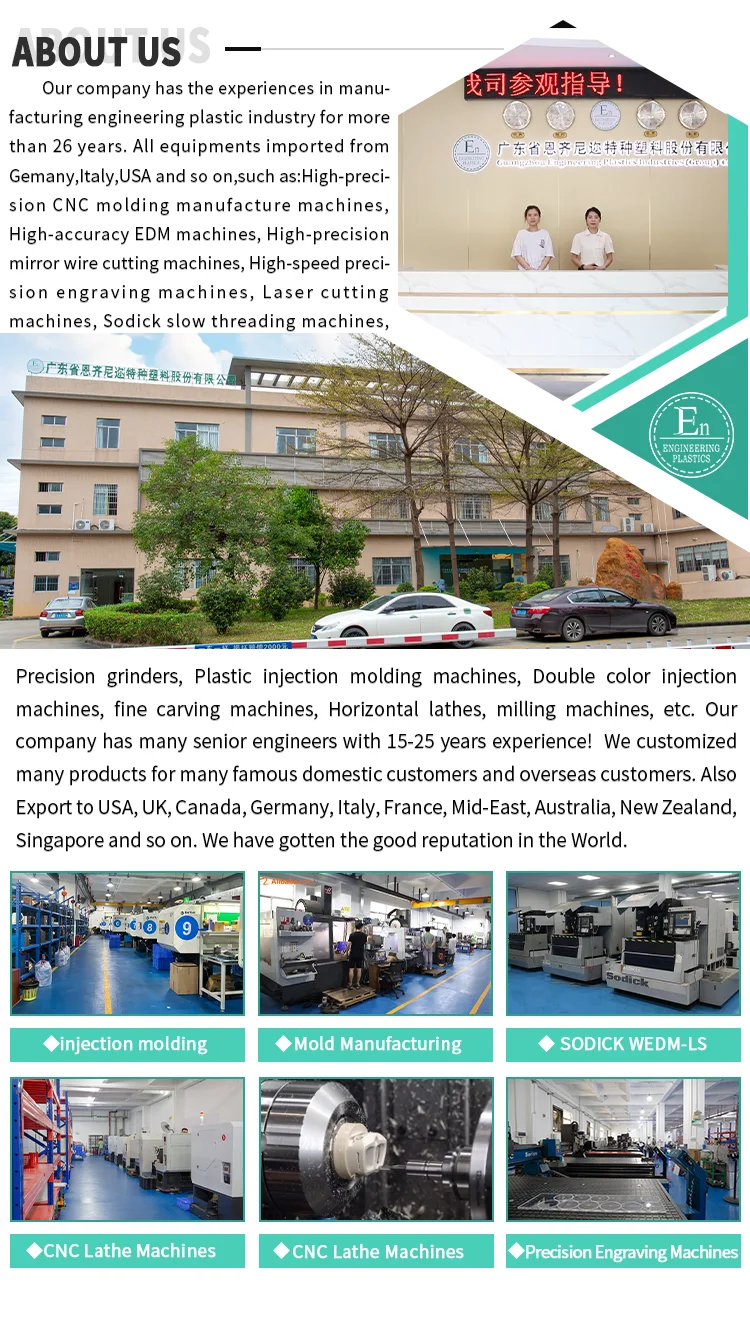

Our Factory





Certification

Companies strictly enforce the ISO9001(2008)international quality certification system, the product quality conforms to the eu RoHS standard.





Application Area

1. Seals, Gears, Fittings.

2. Electrical components.

3. Medical instrument parts.

4. Aerospace parts, Valve Seats.

5. Semiconductor machinery components.

6. Food processing machinery components.

7. Bearings and bushings (bearing grade PEEK).

8. Pump and valve components, Wafer Carriers, Piston Rings.
