600W wind turbine generator home use wind power turbine wind generators
600W wind turbine generator home use wind power turbine wind generators
This wind generator is a real powerhouse and a useful addition to solar energy. Well suited for the leisure sector,
it is famous for battery charging on boats, gazebos, chalets or mobile homes. The wind generator takes at least
air movement and provides reliable even during storms electricity. The aerodynamically optimized nylon blades
are absolutely unbreakable and keep strong loads. Closed maintenance-free ball bearings ensure not only
lightness, high efficiency and low wear. They have an enormous charge current even at low wind speeds. It is
perfect for green windmill, homes, businesses, and industrial energy supplementation!
Model |
EQ-600M1 |
Rated power |
600W |
Maximum power |
680W |
Rated voltage |
12/24V |
Start-up wind speed |
2. 5m/s |
Rated wind speed |
10m/s |
Survival wind speed |
55m/s |
Top net weight |
15kg |

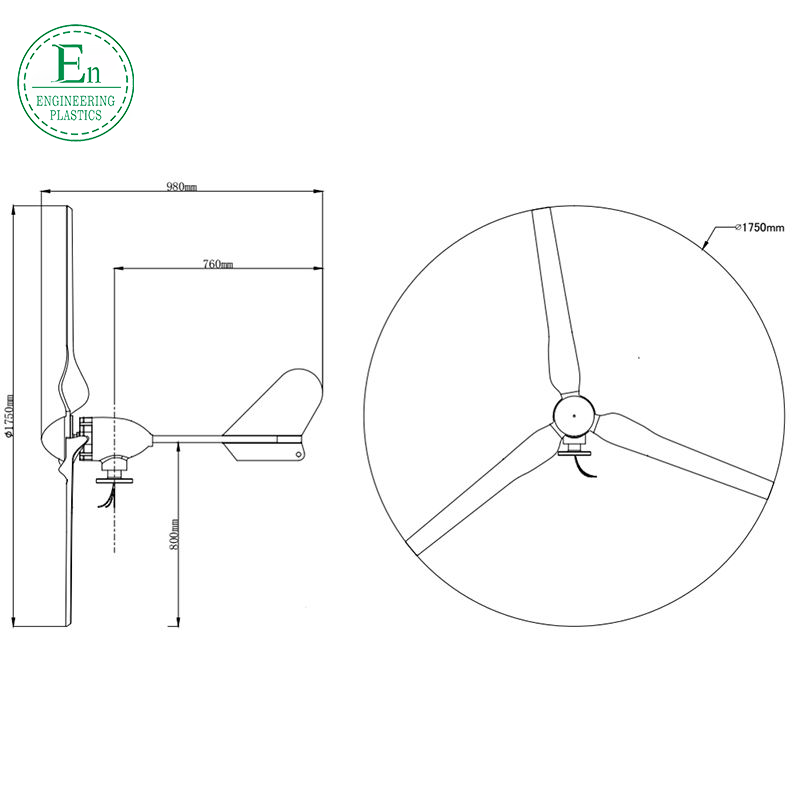

Wheel diameter |
1.75m |
Number of blades |
3 |
Blades material |
Nylon fiber |
Generator type |
Three phase permanent magnet AC synchronous generator |
Magnet material |
NdFeB |
Generator case |
Casting aluminum alloy |
Control system |
Electromagnet/wind wheel yaw |
Speed regulation |
Automatically adjust windward direction |
Working temperature |
-40°C - 80°C |
Design life |
20 y |
Certificates |
CE, IS014001,IS0 9001, TUV |
Features of wind turbine generator:
· High efficiency
· Friendly environmental
· Possibly made hybrid system with solar panel
· Low start-up speed, high wind power utilization, light, cute, low vibration
· Human-friendly design, easy to install and maintain
· Blades using reinforced glass fiber, helped with optimized structure and aerodynamic shape
· Enhancing wind power coefficient and power generating capacity
· Using patented permanent magnet generator and special stator
· Effectively reducing torque resistance and guarantees the stability
· Maintenance-free sliding contact (free from charcoal) guaranteeing a good current flow
· No twisting of the mast cable
· Beening sold and being in use worldwide
· Providing 0.6~1.5 KW power in 24 hours to meet the needs
· Perfect for green windmill, homes, businesses, and industrial energy supplementation
· CE Certification, RoHS Certification and ISO9001 Certification
· 2 Year Warranty
The series of wind turbine with high-quality aluminum alloy and stainless steel parts, the machine is not only
light weight, small size, shape is also better than similar products. The motor uses a unique magnetic circuit
design, so its starting torque is very small, and it can effectively guarantee the wind turbine\'s breeze start
capability. The series of wind turbine blades is designed to meet the principles of aerodynamics, leaf materials
used in foreign imports of high-strength plastic plus 30 percent of carbon fiber elements and anti-UV
anti-corrosion materials synthetic injection molding. Wind wheel running smoothly, reliable, quiet. The fan
operating temperature is 30 degrees to 60 degrees, so it applies to most parts of the world. The series of
wind turbine surface is coated with a special process, so in any harsh conditions its antioxidant and
anti-corrosion ability is the first class. The series of wind turbines features with high power generation
efficiency, breeze start, long life, corrosion resistance, waterproof performance, anti-sand and so on.

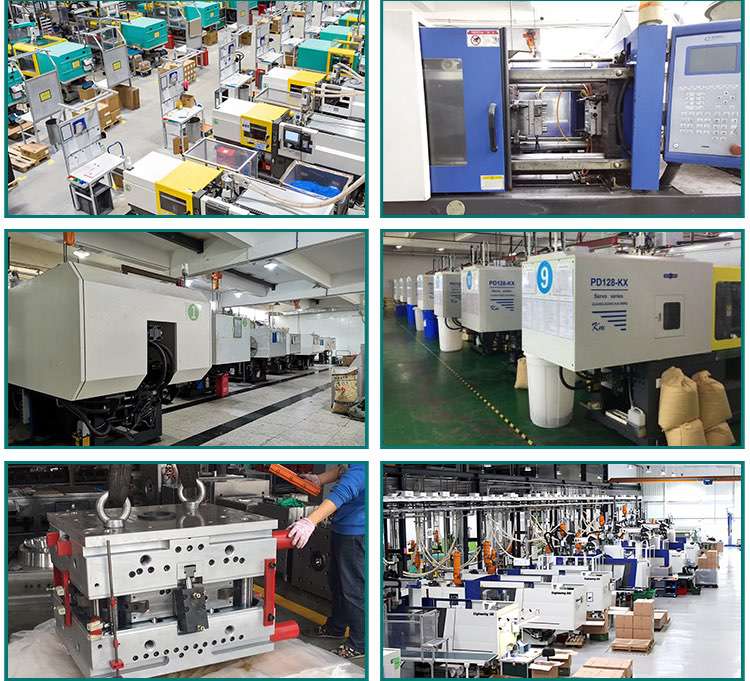

For injection molding, the products will be sent for 15 days. And we support OEM and ODM.
