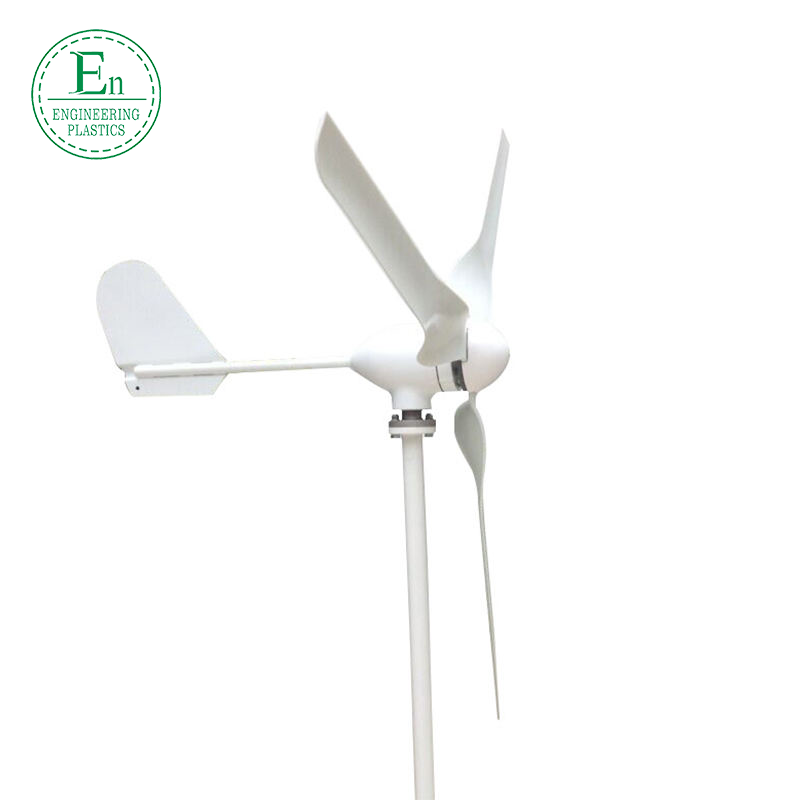

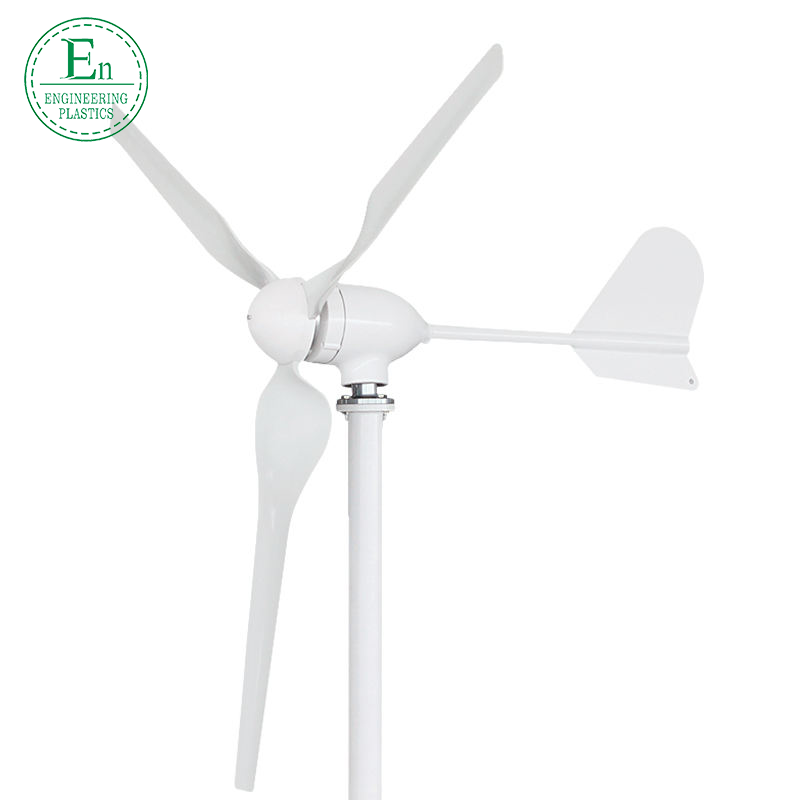

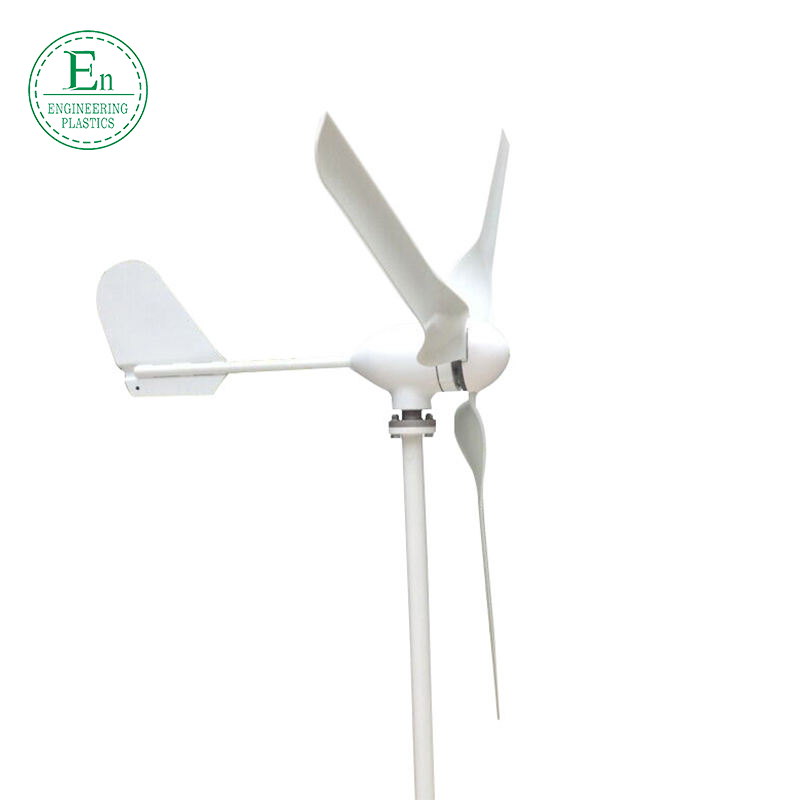

600W wind turbine generator for home electric generating wind turbine generators
600W wind turbine generator for home electric generating wind turbine generators
Wind turbine produce unstable three phase AC, solar panel produce unstable DC, and send to the CPU in the
controller, the controller have rectify functions, it will rectify the unstable AC and DC to stable DC, so the battery
can save the electricity. Through the off grid inverter to transfer the DC to AC, the battery can be send to the
household equipments.
Model |
EQ-600M1 |
Rated power |
600W |
Maximum power |
680W |
Rated voltage |
12/24V |
Start-up wind speed |
2. 5m/s |
Rated wind speed |
10m/s |
Survival wind speed |
55m/s |
Top net weight |
15kg |

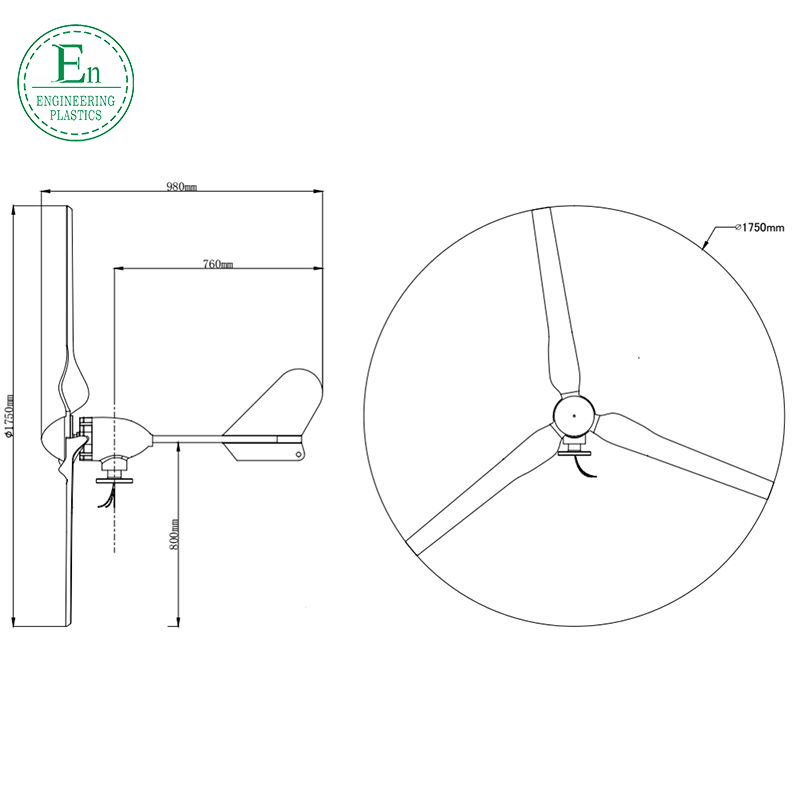

Wheel diameter |
1.75m |
Number of blades |
3 |
Blades material |
Nylon fiber |
Generator type |
Three phase permanent magnet AC synchronous generator |
Magnet material |
NdFeB |
Generator case |
Casting aluminum alloy |
Control system |
Electromagnet/wind wheel yaw |
Speed regulation |
Automatically adjust windward direction |
Working temperature |
-40°C - 80°C |
Design life |
20 y |
Certificates |
CE, IS014001,IS0 9001, TUV |
Features of wind turbine generator
Low start up steed, high wind energy utilization;
Easy installation, tube or flange connection optional;
Blades using new art of precision injection molding, matched with optimized aerodynamic shape and structure,
which enhance the wind energy utilization and annual output;
Body of casting aluminum alloy, with 2 bearings swivel, making it survive stronger wind and run more safety;
Patented permanent magnet ac generator with special stator, effectively reduce torque, well match the wind wheel,
generator and ensure the performance of whole system;
Using MPPT control can adjust the voltage more effectively
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2018,sell to North America(25.00%),Mid East(15.00%),Africa(12.00%),
South Asia(10.00%),Eastern Asia(8.00%),Western Europe(8.00%),Oceania(5.00%),South America(5.00%). There
are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
solar energy product,solar street light,solar air conditioner,solar energy system
4. why should you buy from us not from other suppliers?
10+years experience of solar High quality control efficiency delivery time
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Arabic

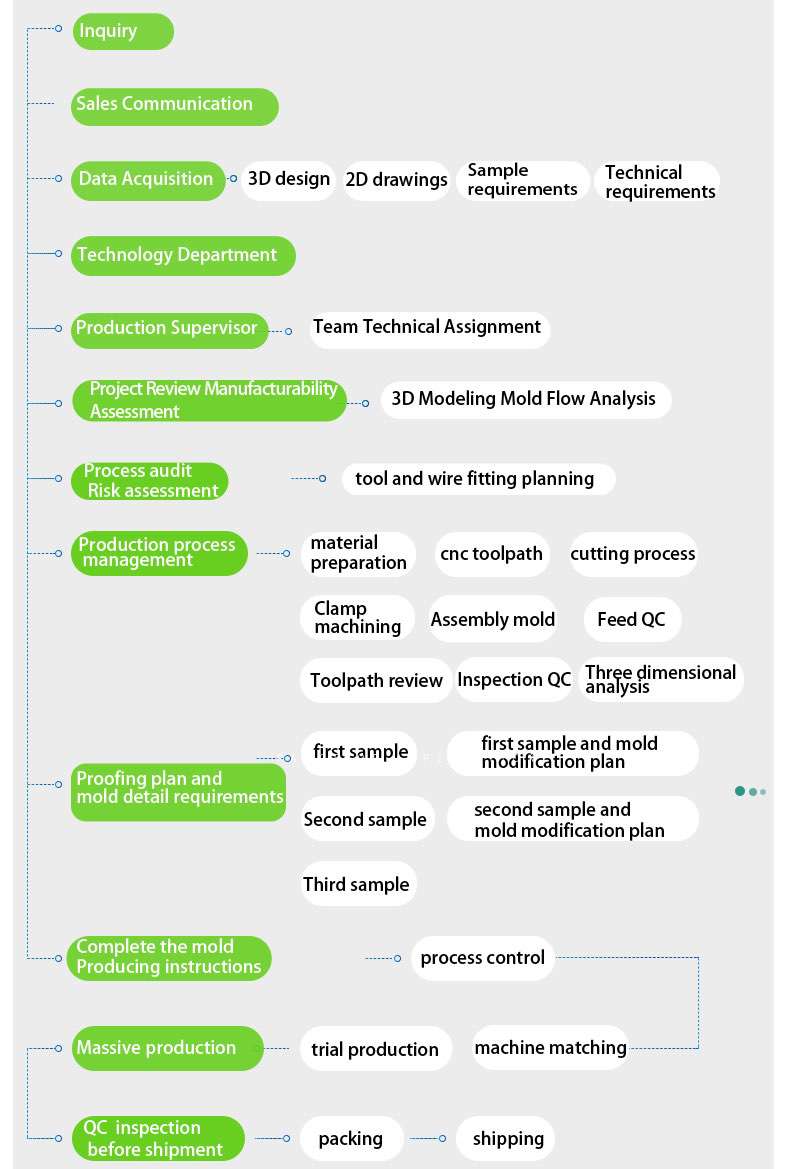

For injection molding, the products will be sent for 15 days. And we support OEM and ODM.
