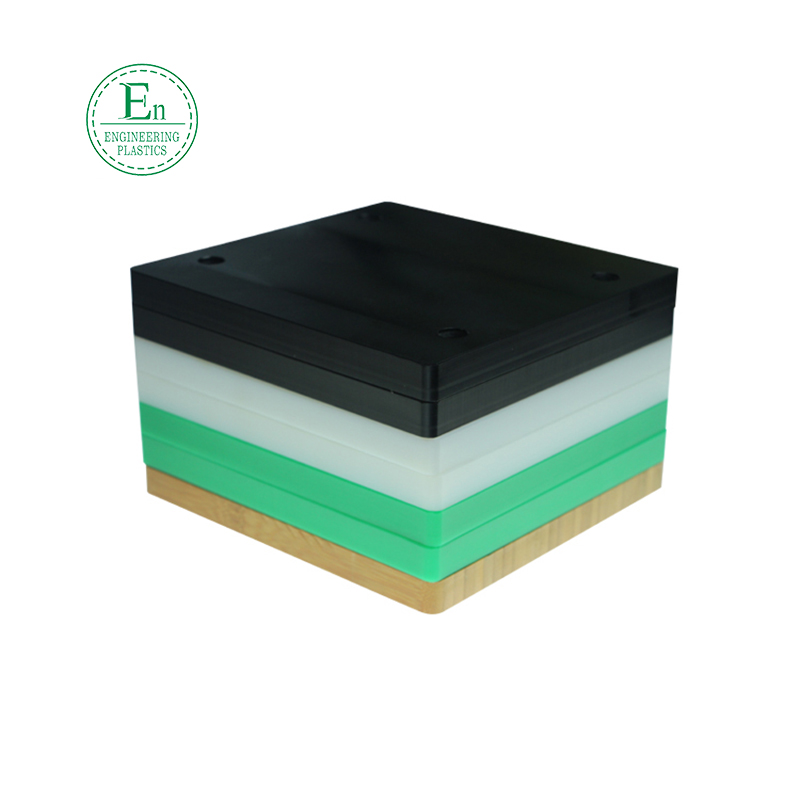

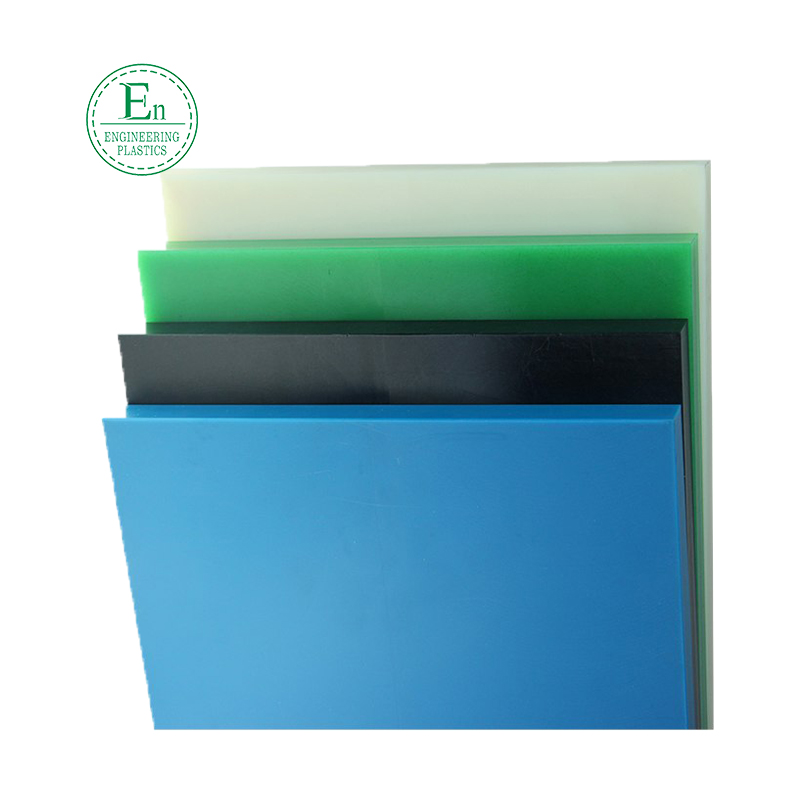

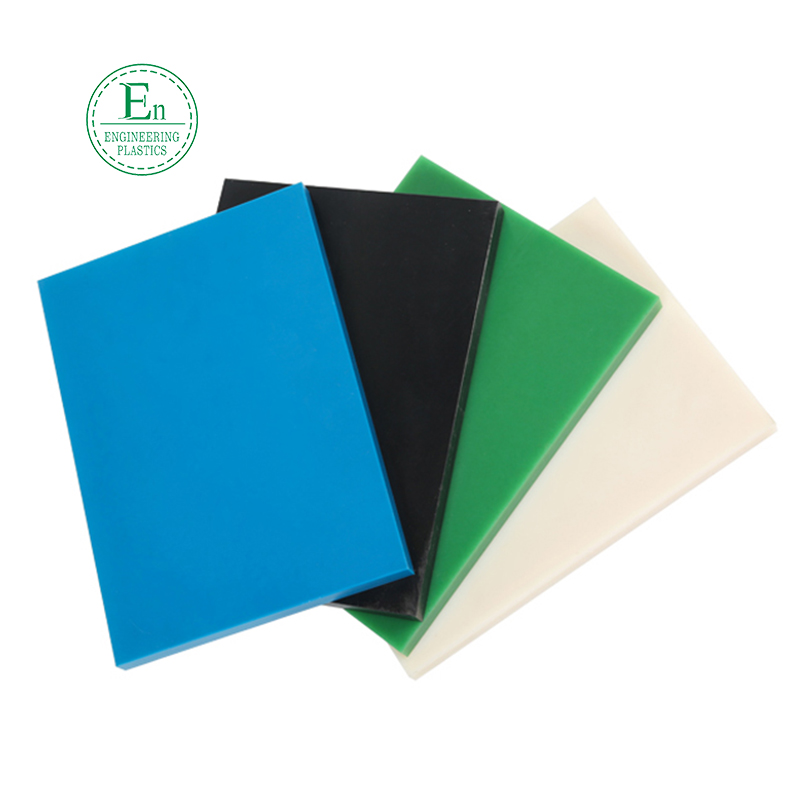

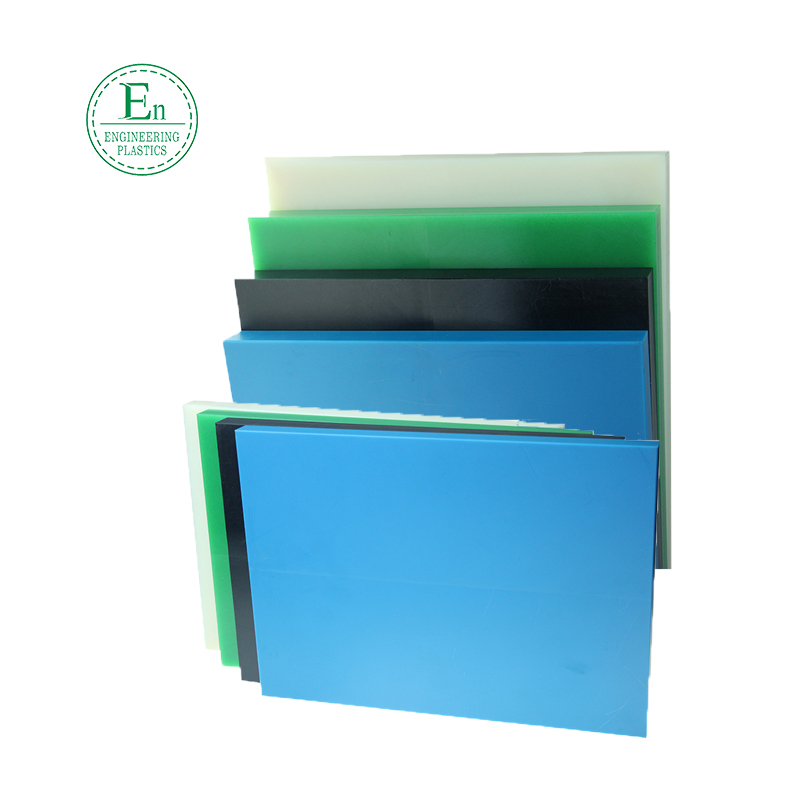

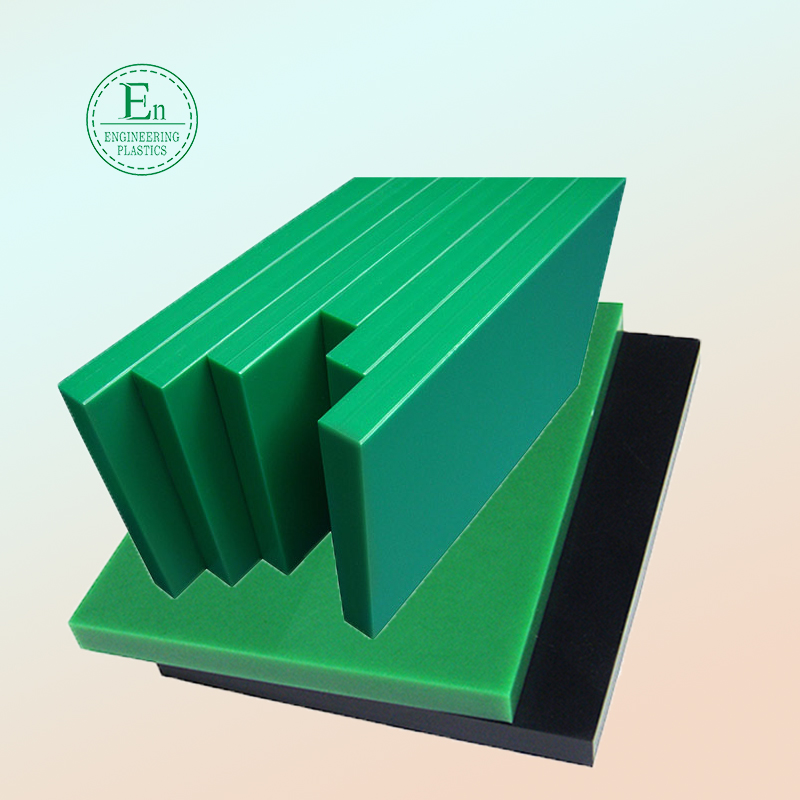

Online hot sale 20mm thickness hdpe sheet plate board custom HDPE sheet
Online hot sale 20mm thickness hdpe sheet plate board custom HDPE sheet
UHMWPE Sheets (Ultra high Molecular Weight Polyethylene) is a thermoplastic engineering plastic with
the average molecular weight more than 6.0 million. This kind of material with five top performance of
high-wear-resistance, good-chemical resistance, low-temperature resistance, self-lubrication and
high-impact resistance, which is regarded as a surprised engineering plastic of excellent comprehensive
capacity and competitive price.
Features of uhmwpe sheet :
1. Abrasive resistance which always have in thermoelectricity polymer.
2. Best shock resistance even in low temperature.
3. Low frictional factor, and well sliding bearing material.
4. Lubricity( no caking, in adhesion) .
5. Best chemical corrosion resistance and stress craze resistance.
6. Excellent machinery process ability .
7. Lowest water absorption(<0.01%) .
8. Paragon electric insulativity and antistatic behavior .
9. Nice high energy radioactive resistance.
10. Density is lower than other thermoplastics (< 1g/m3).
11. Long using temperature range: -269°C--90°C.
Specification |
Unit |
Test Result |
Density |
g/cm3 |
0.94---0.98 |
Compressive Strength |
MPa |
≥42 |
Water Absorption |
% |
<0.01 |
Impact Strength |
KJ/m2 |
≥140 |
Heat distortion Temperature |
℃ |
85 |
Shore Harness |
Shore D |
>40 |
Friction coefficient |
|
0.11-0.17 |
Board name |
HDPE board (high density polyethylene board) |
Melting point |
about 130 ℃ |
Density |
0.941 ~ 0.960 |
Melting temperature |
220 ~ 260℃ |
Specification |
1000mmx2000mmx(1-100mm),The size can be customized |
and HDPE Sheet helps produce low friction components.
HDPE Sheet also has excellent abrasion resistance which helps provide components that are suitable for high
abrasion applications.
on food production lines are important. HDPE Sheet is also important within the water industry and HDPE Sheet
is found in most areas of this industry because of its very low moisture absorption and good chemical resistance.
