High temperature Insulation sheet cnc milling plastic fixing plate cnc machining bakelite part Phenolic Aldehyde CNC Part Product Display Feature: Bakelite sheet feature: good electrical properties and good machining performance under room temp
cnc plastic processing parts

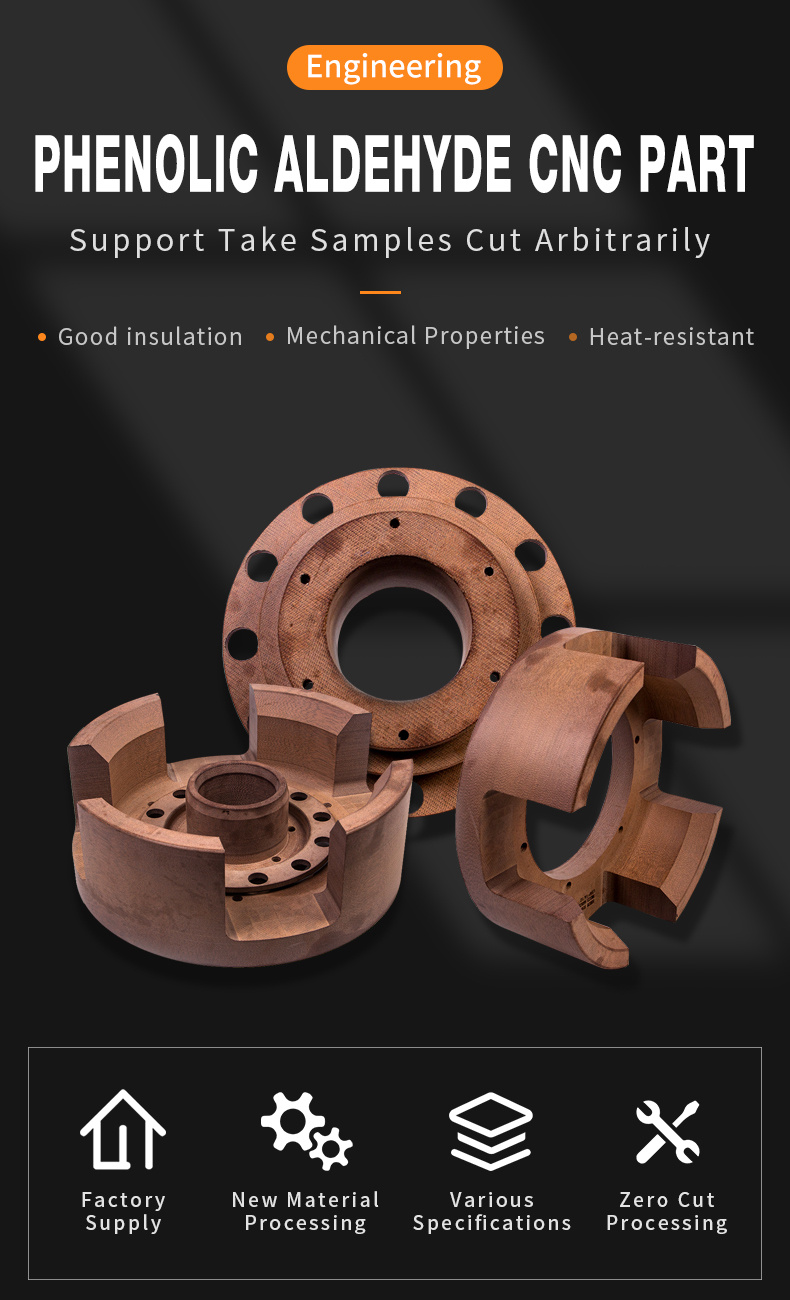

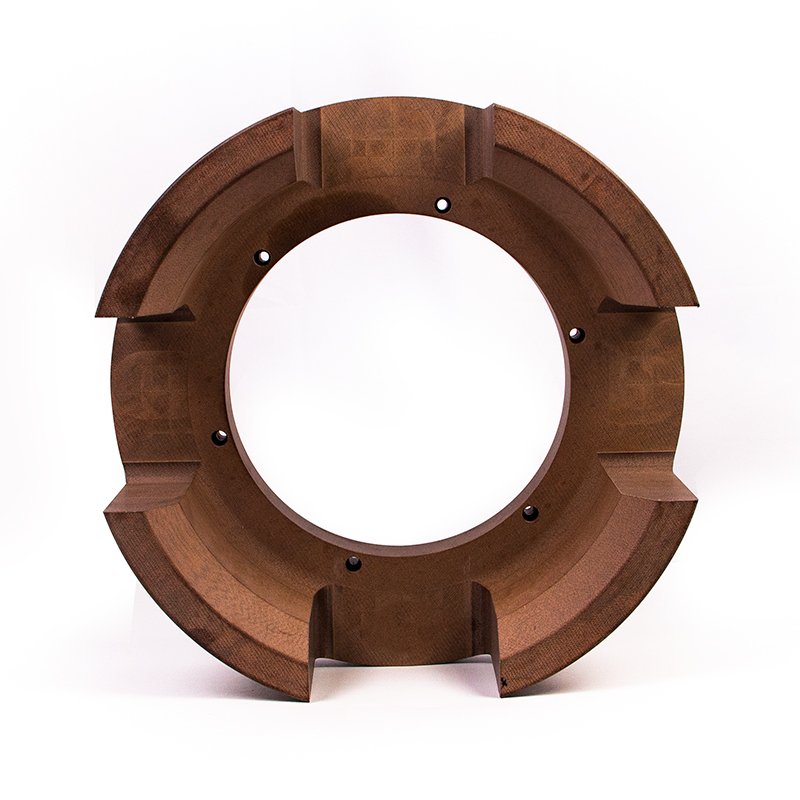

High temperature Insulation sheet cnc milling plastic fixing plate cnc machining bakelite part Phenolic Aldehyde CNC Part

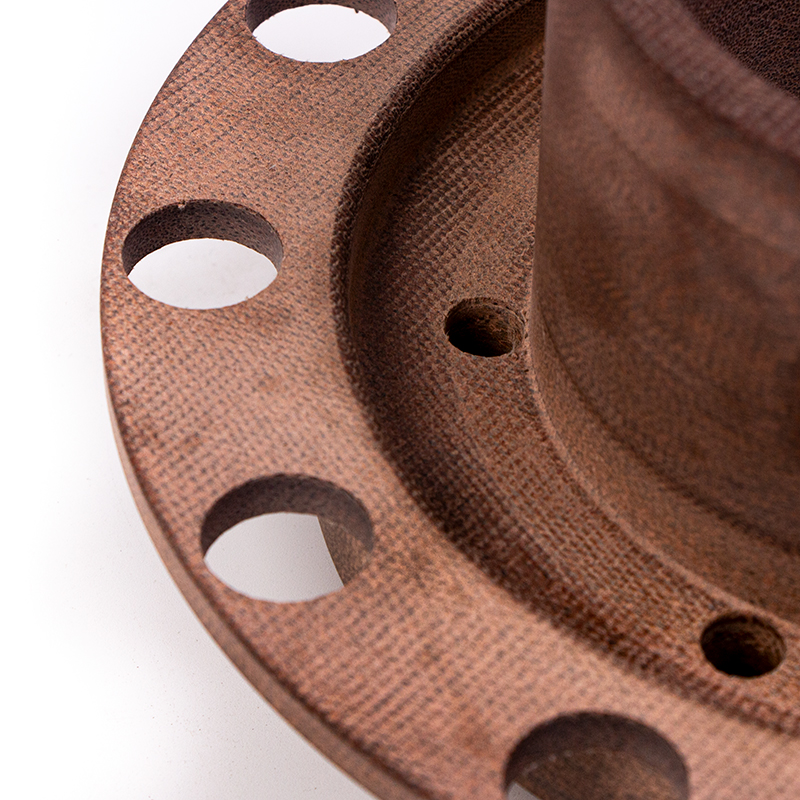

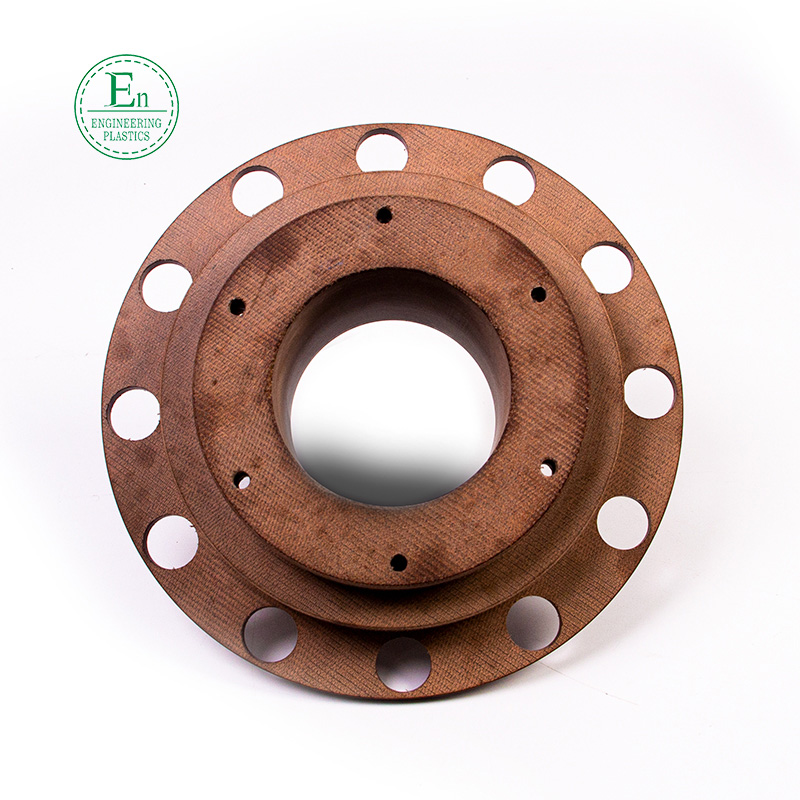

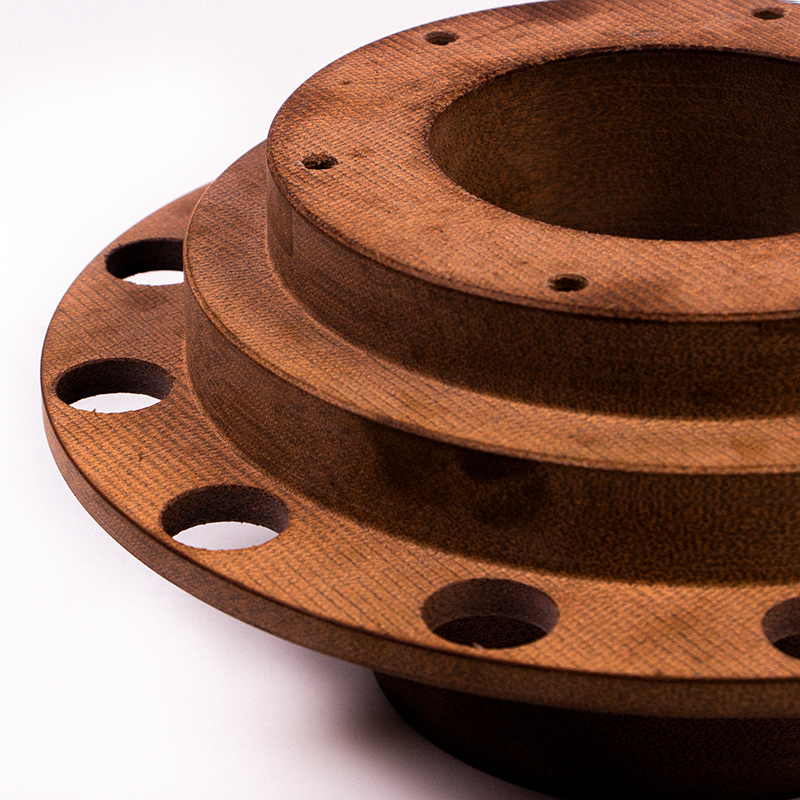

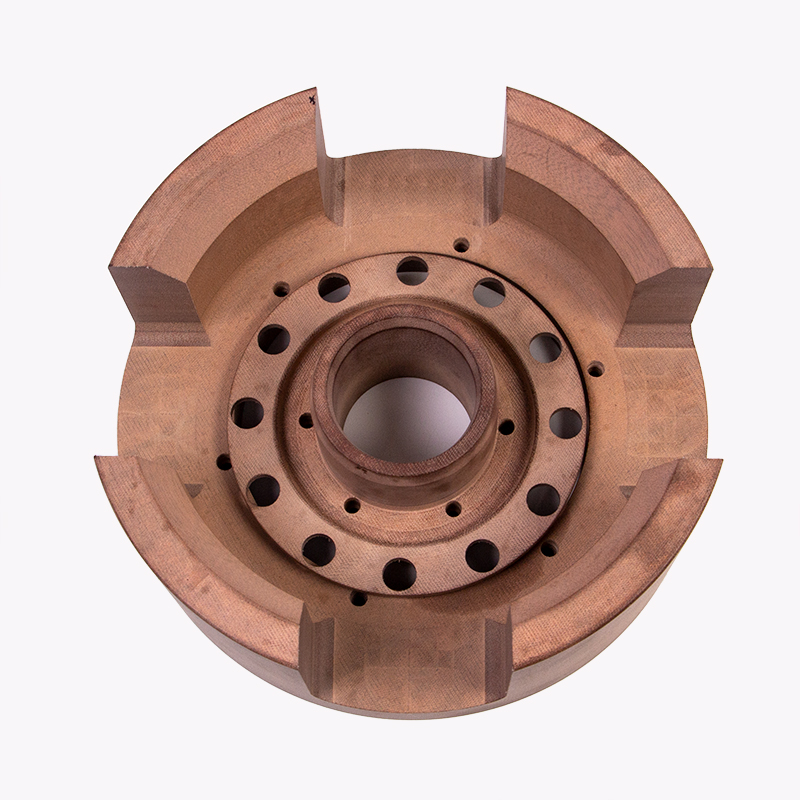

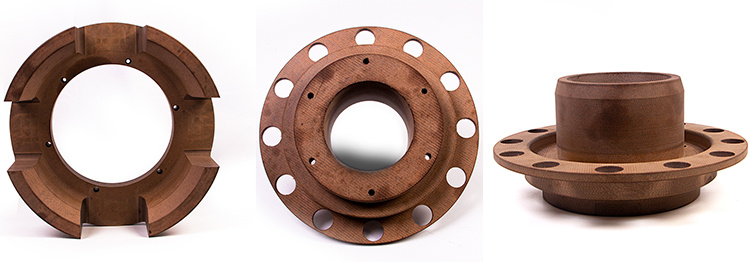

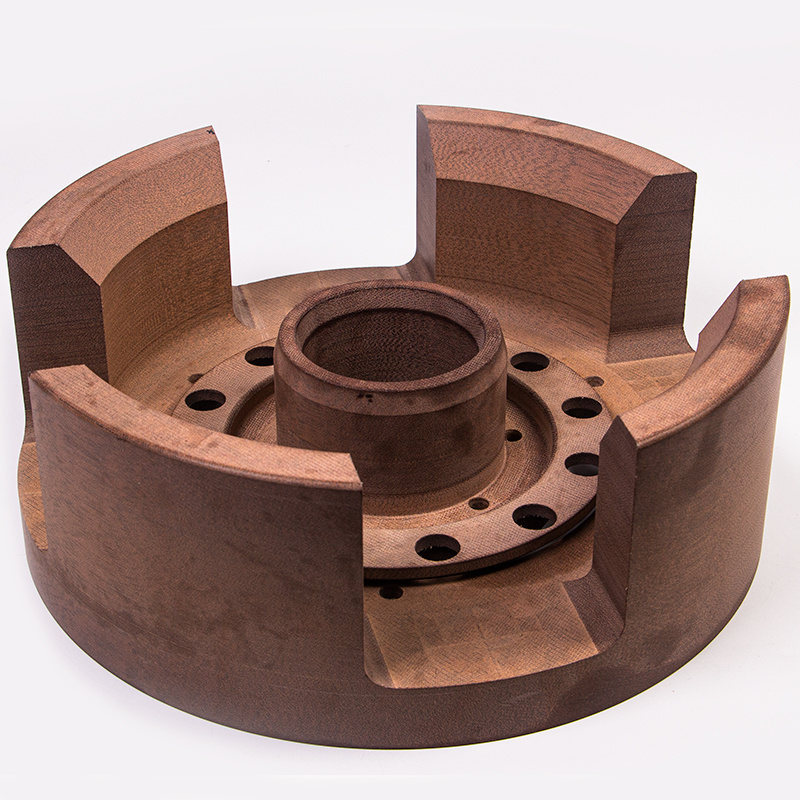

Product Display
Feature:
Bakelite sheet feature: good electrical properties and good machining performance under room temperature, the density is 1.45 g/cm3, angularity ≤ 3 ‰, with excellent electrical, mechanical and processing properties. It can be used in transformer oil.
1.Good electrical properties at normal temperature, insulation, no static
2.Good machining performance, Wearable
3.High temperature, heat resistance of 130 °C
4.Fire resistance grade: UL94-HB
5.Color: orange-red, black, natural (kraft paper color)
6.Complete specifications and adequate stock to meet the different needs of customers purchasing
7.Good mechanical properties
8.No water absorption
9.Good surface hardness
10.Abrasion resistance
11.Good insulation
Technical Of Phenolic Aldehyde Sheet
|
No.
|
Item
|
Unit
|
Index value
|
|
1
|
Color
|
/
|
Orange/black
|
|
2
|
Density
|
g/cm3
|
1.30-1.45
|
|
3
|
Coefficient of linear thermal expansion
|
Kx
|
10
|
|
4
|
Shock strength
|
/
|
≥15
|
|
5
|
Combustibility(UL94)
|
HB
|
94
|
|
6
|
Vertical bending strength
|
MPa
|
≥120
|
|
7
|
Vertical compression strength
|
MPa
|
≥250
|
|
8
|
Tensile strength
|
MPa
|
≥104
|
|
9
|
Impact strength
|
KJ/m
|
≥67
|
|
10
|
Adhesive strength
|
N
|
≥3600
|
|
11
|
Insulation Resistance after soaking
|
Ω
|
1.0*108
|
|
12
|
Vertical electric strength
|
KV/m
|
≥12.1
|
|
13
|
Parallel breakdown voltage
|
KV
|
≥10
|
|
14
|
Relative dielectric constant(1MHz/50Hz)
|
/
|
≤5.5
|
|
15
|
Volume resistance
|
Ω x cm
|
107~108
|

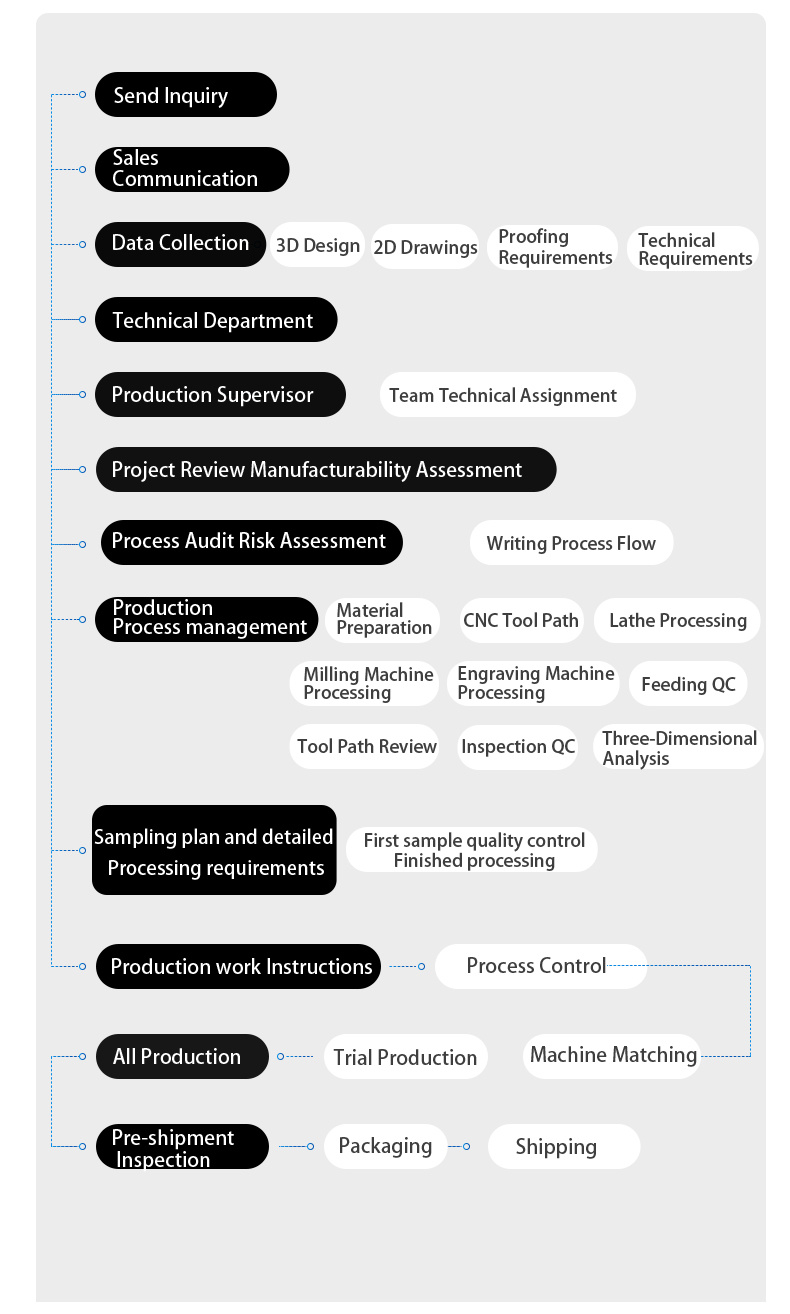

Production Process
Why choose us
Serve customers sincerely is our aim
Diversified Processing
Advanced plastics processing equipment
Support variety processing methods.

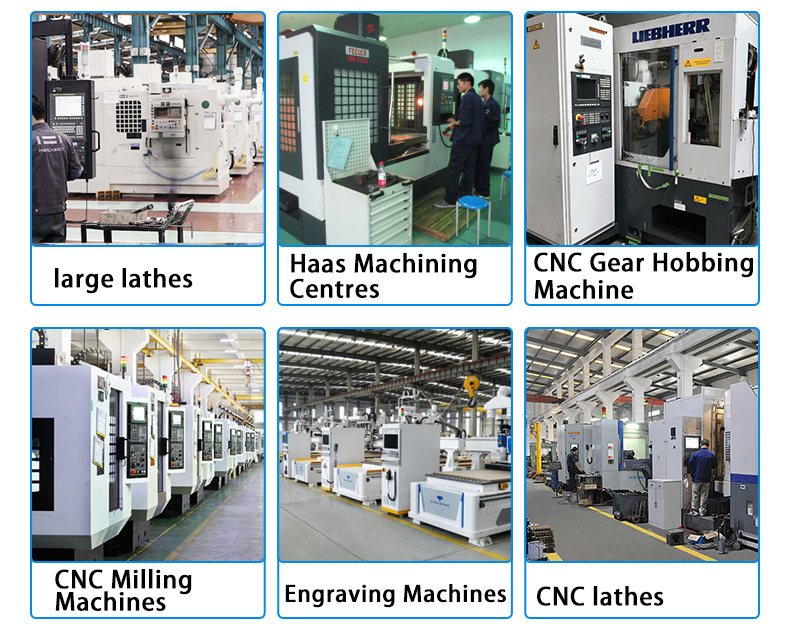

Factory Display
How To Customize
●Different thickness, size,color, surface ,shape OEM for you.
●We can customize all kinds of Engineering plastics products according to customers’drawings or samples.
Application Field
Phenolic Aldehyde made of insulation paper impregnated with phenolic resin in heat-rolling and tightening, baking and curing.

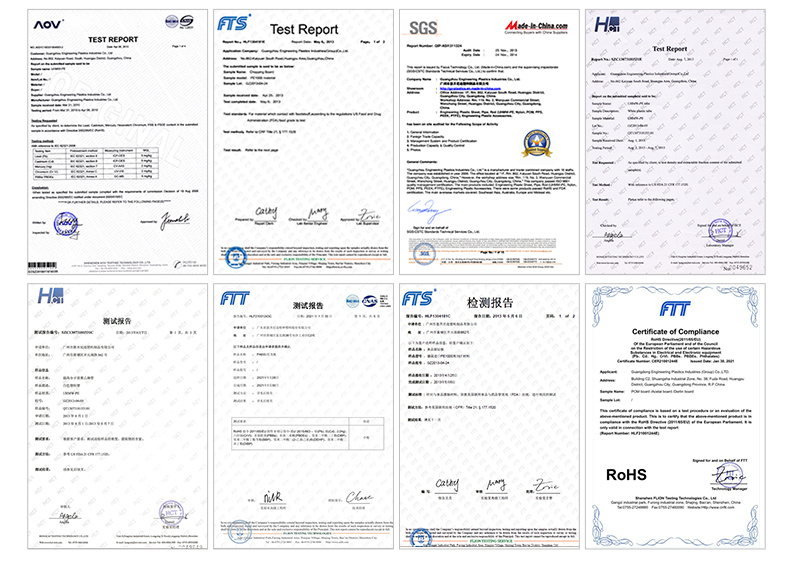

Certificate
Companies strictly enforce the ISO9001(2008)international quality certification system,the product quality conforms to the EU RoHS standard.
