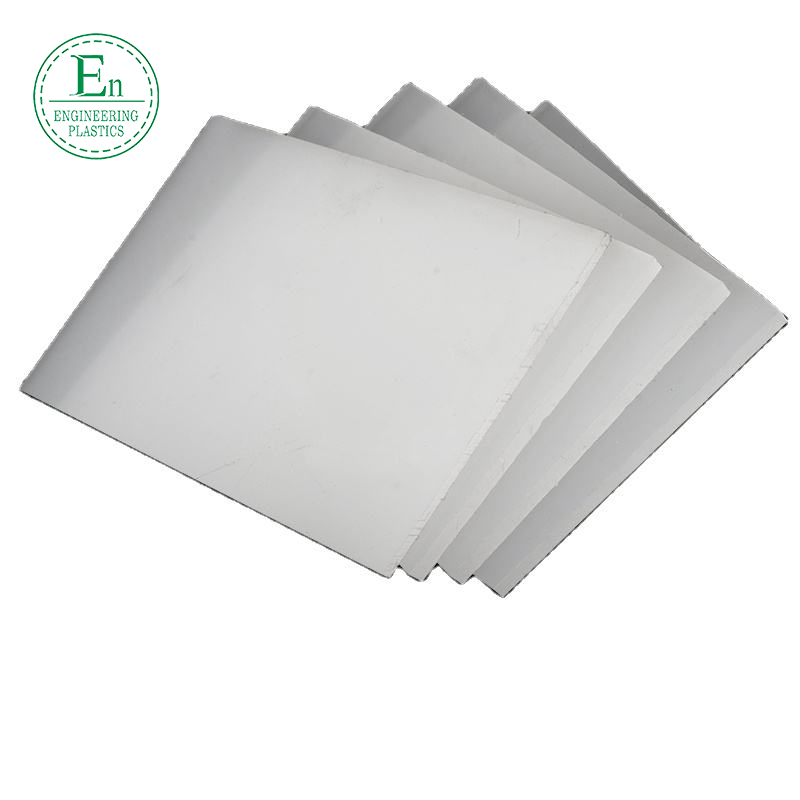

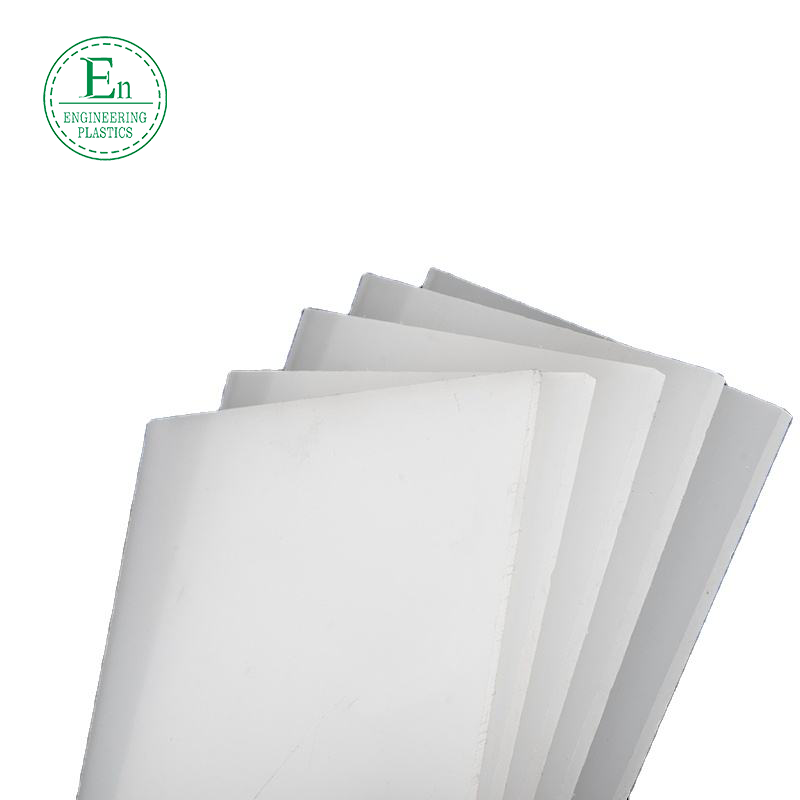

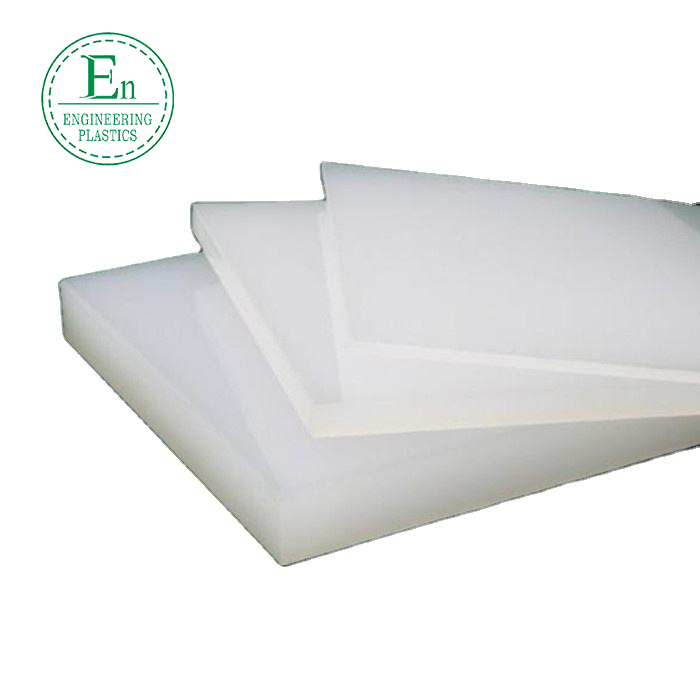

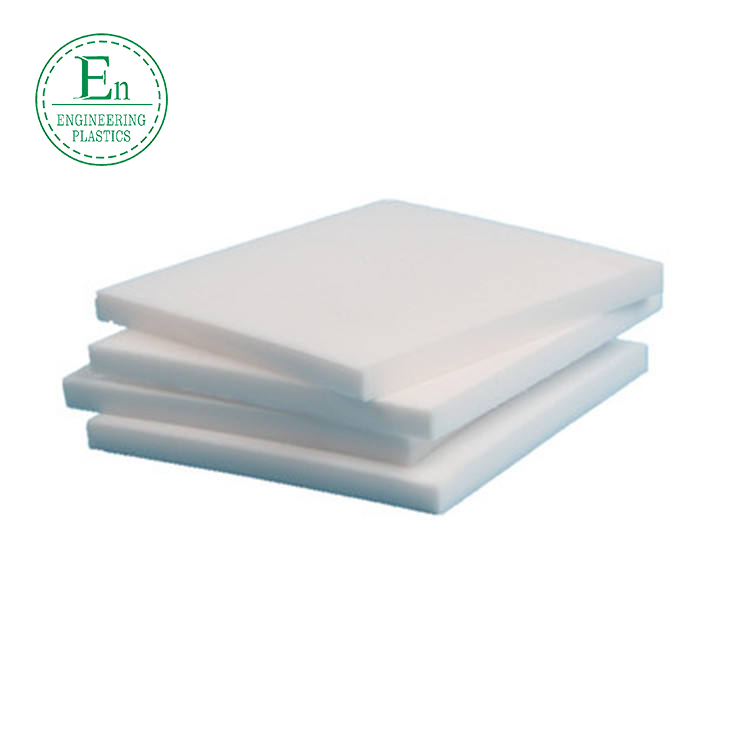

Factory direct supply PVDF sheet plate board customized PVDF sheet

  • Product name: pvdf plastic sheet

  • Mold material: as per your request

  • Tolerance: 0.05mm

  • Size: Customized

  • Shape: custom

  • Color: white

  • Certificate: ISO9001/SGS

  • Product description:

    Factory direct supply PVDF sheet plate board customized PVDF sheet

Related Products:

Similar items

read more

  • Details

Factory direct supply PVDF sheet plate board customized PVDF sheet


PVDF, polyvinylidene fluoride, is a versatile fluoropolymer which is both strong and tough as reflected by

its tensile properties and impact strengths. PVDF has excellent resistances to creep and fatigue. In thin

sections, such as films, filament, and tubing, PVDF components are flexible and transparent.


Where load bearing is important, PVDF fluoropolymers are rigid and resistant to creep under mechanical

stress and load. Because PVDF is stable to sunlight, and other sources of ultraviolet radiation, it is widely

used as base resins for long-lasting exterior coatings. An additional advantage over other fluoroplastics

is that PVDF can be welded into tanks for acid and corrosive chemical processing in elevated temperature

environments.

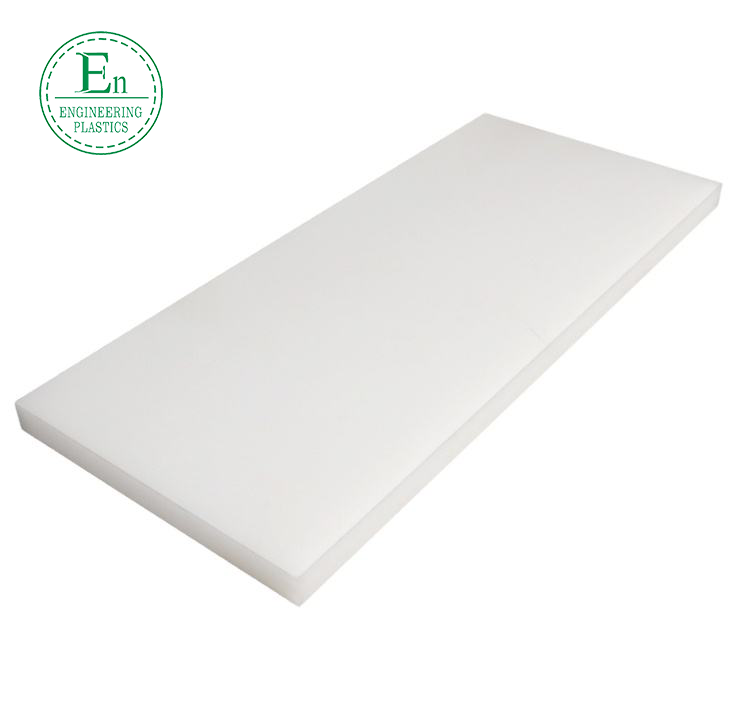

Main-01

PVDF sheet plate performance index:

Item

Test Standard

Unit

Value

Density

ISO1183

g/cm3

1.77

Water absorption

DIN53495

%

0.04

Yield strength

ISO527

MPa

50

Tensile strength

ISO527

MPa

46

Bending strength

ISO178

MPa

80

Elasticity modulus

ISO527

MPa

2000

Impact strength(no notch)

ISO179

Kj/m2

252

Impact strength (notch)

ISO179

Kj/m2

22

Friction coefficient

DIN53375

0.34

Shore hardness

DIN53505

D

78

Flame retardant rating

UL94

V-0

Continuous service temperature

°C

-30-150°C



Advantages of PVDF sheet plate:
PVDF fluoropolymers are rigid and resistant to creep under mechanical stress and load. Because PVDF

is stable to sunlight, and other sources of ultraviolet radiation, it is widely used as base resins for

long-lasting exterior coatings. An additional advantage over other fluoroplastics is that PVDF can be

welded into tanks for acid and corrosive chemical processing in elevated temperature environments.


Key Features of PVDF sheet plate:
- Mechanical strength and toughness
- High abrasion resistance
- High thermal stability
- High dielectric strength
- High purity
- Readily melt processable
- Work temperature range -30-150 ° C
- Resistance to most chemicals and solvents
- Resistance to ultraviolet and nuclear radiation
- Resistance to weathering
- Resistance to fungi
- Weldable

Applications of PVDF sheet plate:
- High purity water
- Halogen
- Acid applications
- igh temperature applications
- Pressure applications
- Solar glazing



For sheet/board/plate/rod/tube, the products will be sent for 1 day. And we support OEM and ODM.
