free machining parts pps GF black sheet custom cnc fire retardant pps plastic board PPS（Polyphenylene sulfide） is a semi-crystalline high performance thermoplastic with optimised tribological properties for demanding bearing and friction
pps gf30 pps gf40
free machining parts pps GF black sheet custom cnc fire retardant pps plastic board
PPS（Polyphenylene sulfide） is a semi-crystalline high performance thermoplastic with optimised tribological properties for demanding bearing and friction requirements. The molecular structure of PPS is comparatively simple, and the main molecular chain is alternately arrayed by benzene rings and sulfuratoms, lots of rings and sulfur and sulfuratoms supplies PPS with the rigidity resistance as well as the pliancy resistance. The inner symme trical molecular structure makes PPS easily crystal, non-polarity, good electrical resistance and low water absorption and so on.PPS is widely used in precision and chemical engineering, plant construction, aircraft and aerospace industry.
Product Paramenter
| property | item no | unit | value |
| 1 | density | g/cm3 | 1.43 |
| 2 | water absorption (23℃ in air) | % | 0.03 |
| 3 | tensile strength | Mpa | 75 |
| 4 | tensile strain at break | % | 5 |
| 5 | compressive stress (at 2% nominal strain) | Mpa | 55 |
| 6 | charpy impact strength (unnotched) | KJ/m2 | 25 |
| 7 | charpy impact strength (notched) | KJ/m2 | 3.5 |
Color：Natural、Black、Khaki and so on.

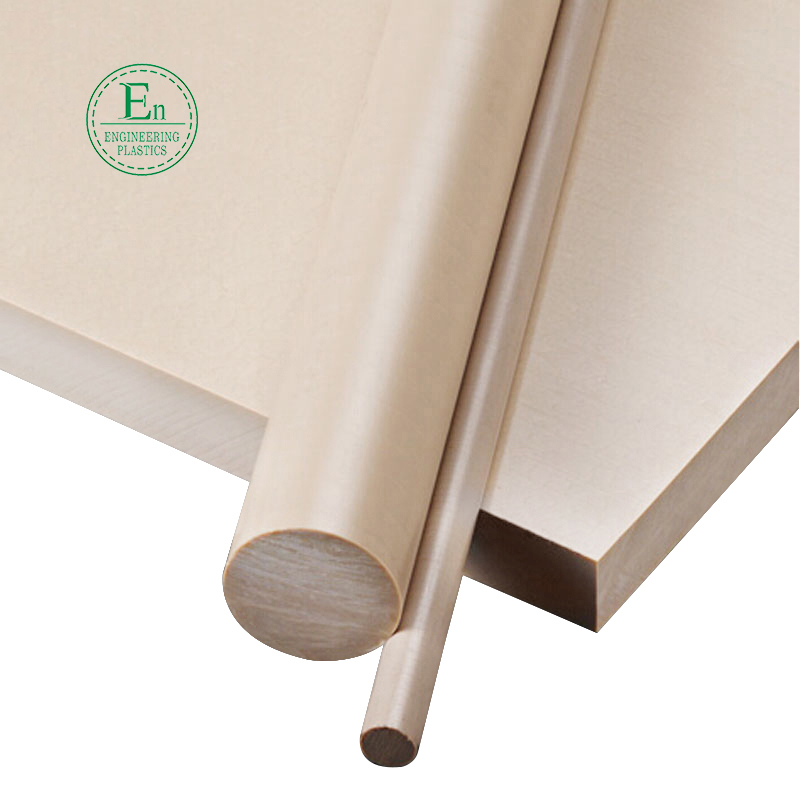

PPS Sheet Size：500X1000X(Thickness:1-100mm）、600X1200X(Thickness:1-100mm).

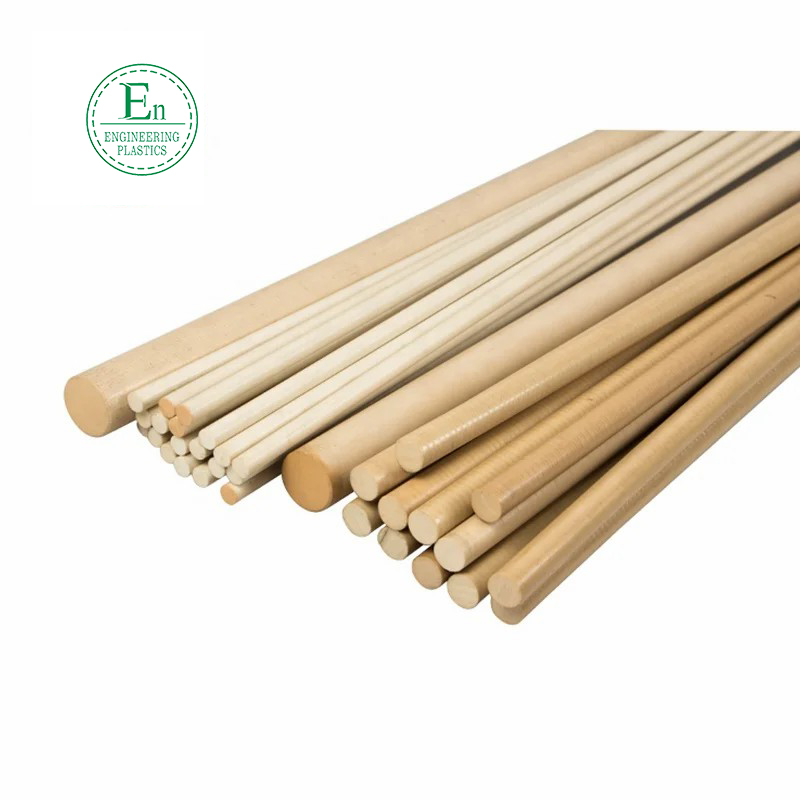

PPS Rod Size：Φ6-Φ200X1000mm.
PPS Tube Size：(OD)30-800X (ID)20-600X length(500-1000mm).
PPS advantage
PPS resin mechanical strength is not high, but afterreinforced glass fiber, carbon fiber or mineral stuff filling, its strength and stiffness are multiplied, and having excellent resistance to creep and fatigue. Its surface hardness is high, rockwell hardness > 100HR , tensile strength reach 170 mpa, bending strength > 220MPA, notched impact strength > 16MPA, bending modulus > 3.5 x 10^4
PPS has excellent heat resistance, the melting point is more than 280 ℃ . When suffering 1.8 MPA load, its thermal deformation temperature is more than 260 ℃ . Common long-term usage temperature is 220-240 ℃, PPS resin has good flame resistance, no need to add any flame retardants then reach UL94 level 0 and 5-V standard, when burning, smoke output is very low
PPS is excellent chemical resistance, just behind ptfe material, it won't dissolve in any organic solvents below 200 ℃, except strong oxidizing acid, it is also strong resistance to inorganic acid, alkali and salt . especially it is also stable in variety of radiation.
