High performance carbon filled peek polymer properties virgin peek material plastic slider processing workpiece
We can use Virgin PEEK; PEEK Glass Fiber Reinforced;PEEK Carbon Fiber Reinforced to make parts as below
Features:
1. Excellent strength, and stiffness up to 500°F (260°C)
Color：Natural、Black、Khaki and so on.
PEEK is a kind of heat-resistant, high performance thermoplastic special engineering plastics. It has good mechanical properties and chemical resistance, abrasion resistance, and hydrolysis resistance properties etc.; it has a light proportion and self-lubricating properties.
Product parameters
|
Property |
Item No. |
Unit |
PEEK-1000 |
PEEK-CA30 |
PEEK-GF30 |
|
1 |
Density |
g/cm3 |
1.31 |
1.41 |
1.51 |
|
2 |
Water absorption(23℃ in air) |
% |
0.20 |
0.14 |
0.14 |
|
3 |
Tensile strength |
MPa |
110 |
130 |
90 |
|
4 |
Tensile strain at break |
％ |
20 |
5 |
5 |
|
5 |
Compressive stress(at 2%nominal strain) |
MPa |
57 |
97 |
81 |
|
6 |
Charpy impact strength (unnotched) |
KJ/m2 |
No break |
35 |
35 |
|
7 |
Charpy impact strength (notched) |
KJ/m2 |
3.5 |
4 |
4 |
|
8 |
Tensile modulus of elasticity |
MPA |
4400 |
7700 |
6300 |
|
9 |
Ball indentation hardness |
N2 |
230 |
325 |
270 |
|
10 |
Rockwell hardness |
-- |
M105 |
M102 |
M99 |

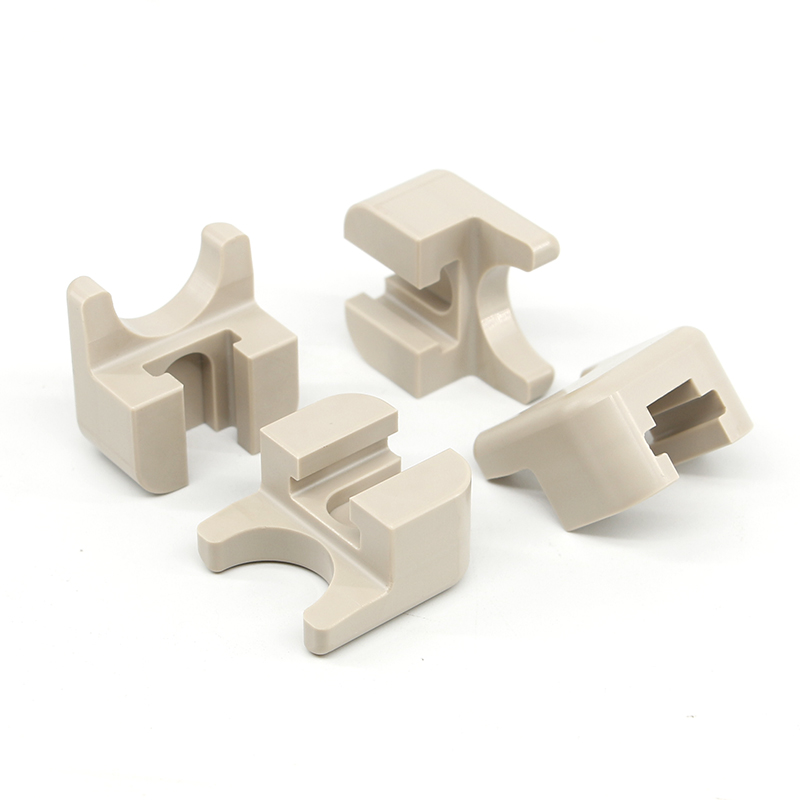

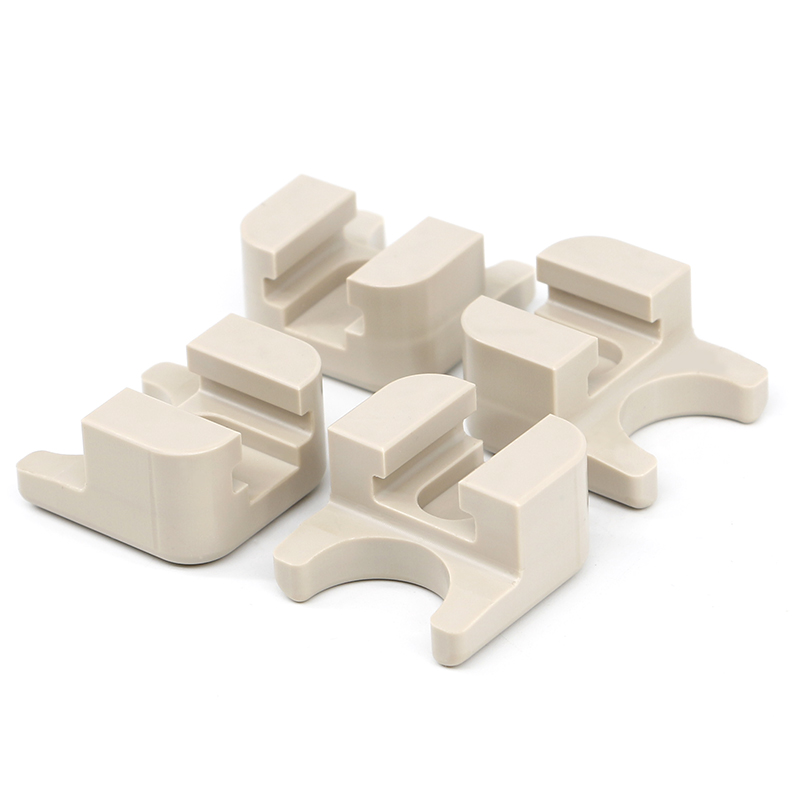

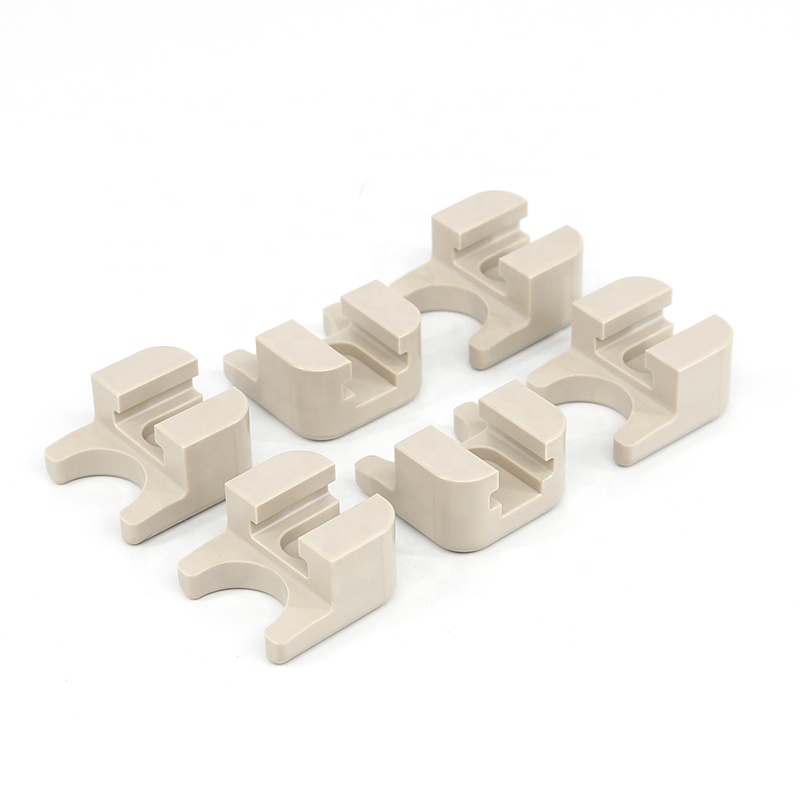

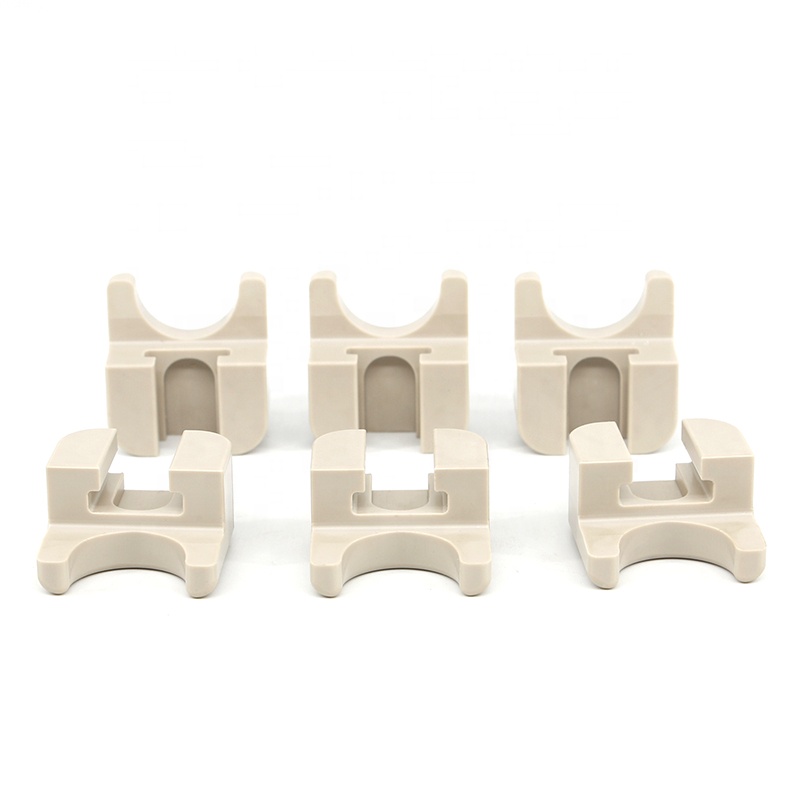

Products Display

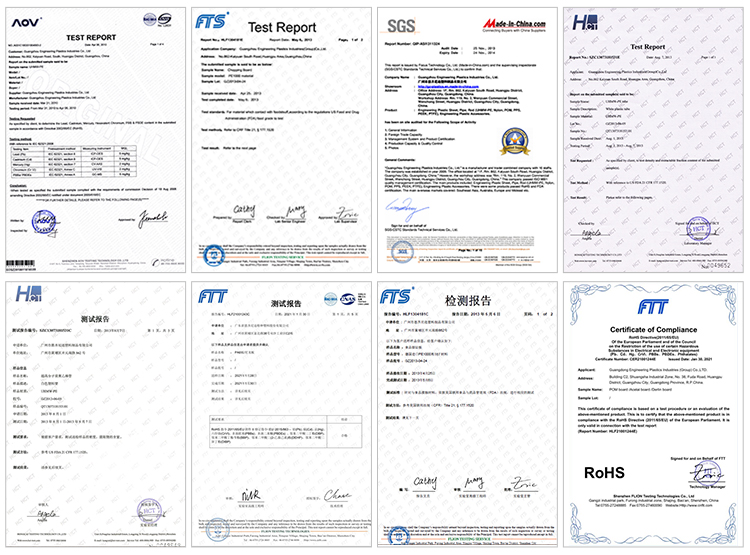

CERTIFICATION
Companies strictly enforce the ISO9001(2008)international quality certification system, the product quality conforms to the eu RoHS standard.
