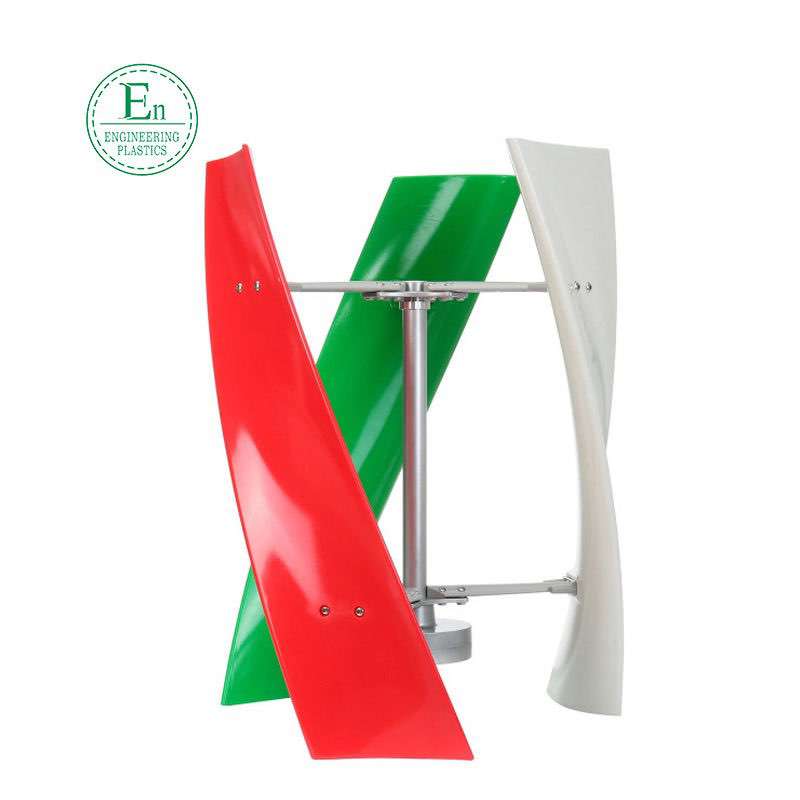

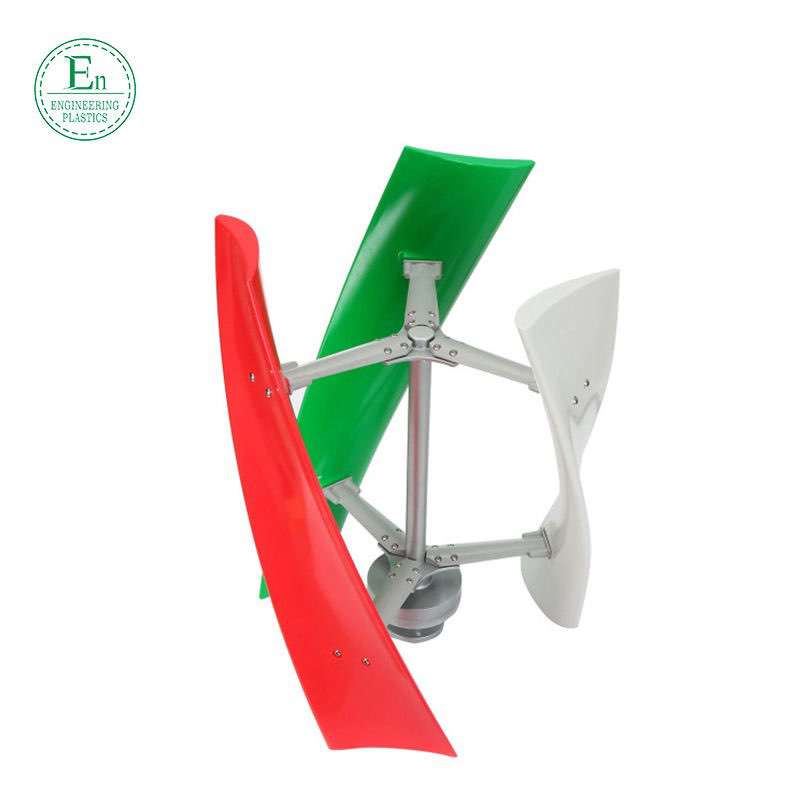

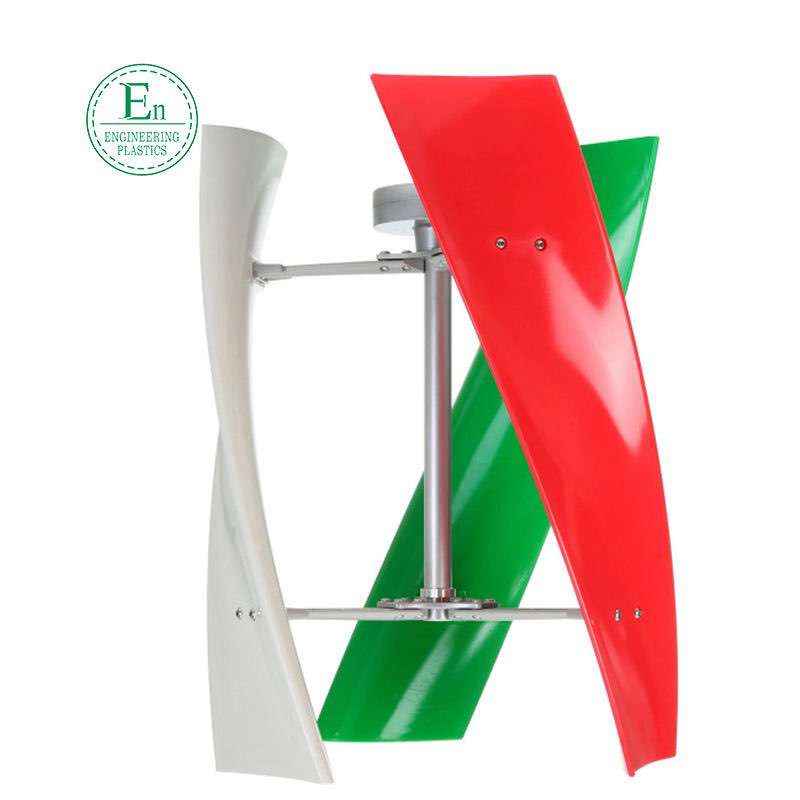

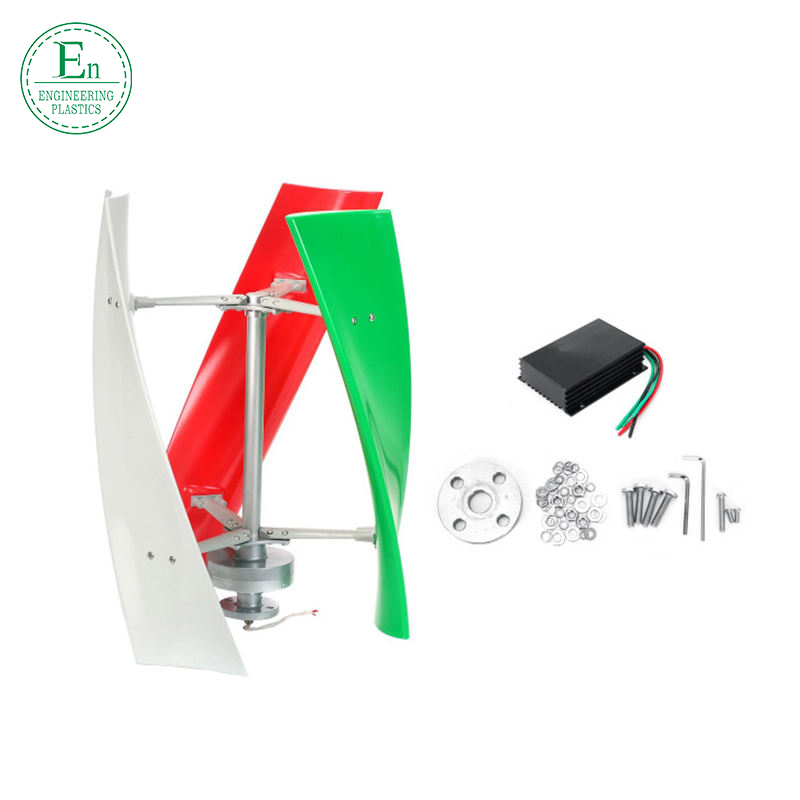

Small vertical axis wind turbine generator for home use

High-end quality wind turbine generator

1. Patented technology permanent magnetic levitation generator, special stator design, low resistance

torque of the generator, low starting wind speed, high wind energy utilization;

2. Customized connections using the national standard flange, to facilitate a variety of installation

requirements;

3. Wind turbine blades are made of high-strength glass fiber reinforced plastic, with optimized pneumatic

shape design and structural design after molded plastic, better salt corrosion resistance;

4. The housing is made of alloy steel, with customized bearing rotor, low wind noise, low failure rate,

stronger typhoon resistance, safe and reliable operation.

Model	EQ500X	EQ1000X	EQ2000X	EQ3000X	EQ5000X
Rated power	500W	1000W	2000W	3000W	5000W
Maximum power	550W	1030W	2050W	3000W	5090W
Rated voltage	12v/24v/48v
Startup wind speed	2m/s
Rated wind speed	12m/s
Survival wind speed	50m/s
Top net weight	12kg	13.5kg	14. 8kg	15kg	18kg
Wheel diameter	0.8m
Number of blades	3 pieces
Blades material	Nylon fibre/ customization
Generator type	12v/24v/48v
Magnet material	2m/s
Generator case	12m/s
Control system	50m/s
Speed regulation	18kg
Working temperature	-40°C - 80°C
Certificates	CE, IS014001,IS0 9001, TUV

Product details of wind turbine generator:

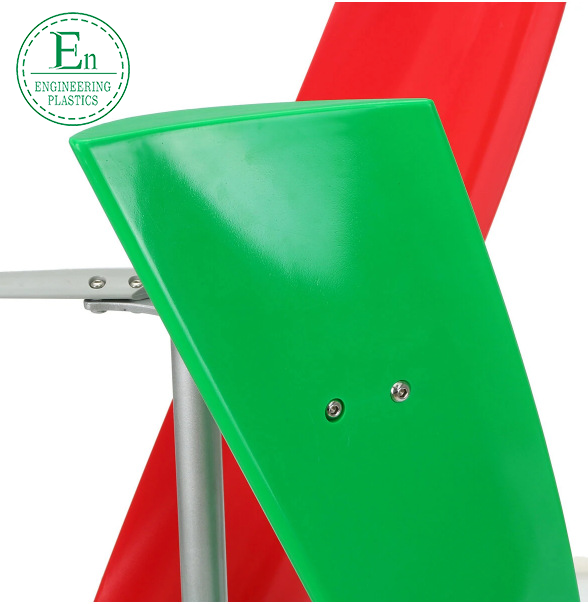

1. Curved blade design,utilizes wind resource effectively and obtains a higher power generation.

2. Coreless generator, Horizontal rotation and aircraft wing design reduce the noise to an unperceivable

level in natural environment.

3. Wind resistance. Horizontal rotation and triangular double fulcrum design make it only bear a small

wind pressure even in strong wind.

4. Rotation radius. smaller rotation radius than other types of wind turbines, space is saved while

efficiency improved.

5. Effective wind speed range. special control principle expended the wind speed to 2.5 ~ 25m/s, utilizes

wind resource effectively and obtains a higher power generation.

Description of wind turbine generator:

The permanent magnetic wind turbine generator has high-efficient energy output, is the most compact,

quiet, rugged and reliable spiral vertical axis small wind turbine.

The wind turbine generator is designed on a unique low rpm maglev generator

The wind turbine generator has zero cogging with its highly efficient, allow the turbine to generate power at

very low wind speeds and deliver a high output in working wind speeds

The wind turbine generator can survive from winds up to 40m/s by a passive aero-dynamic design that

reduces turbine RPM and power output at a certain threshold

The robust aluminium alloy chassis and stainless steel components are protected by the aerospace grade

coatings and anodizing.

Application of wind turbine generator:

The wind turbine generator is widely used in LED lighting system, street signal & camera security, outdoor

telecommunication system and off-grid residence.

The wind turbine generator is extremely easy to integrate with solar panels to consist wind & solar hybrid

off-grid power systems for consistent and clean energy. Available in 12V, 24V and 48V for battery charging.

Advantages of wind turbine generator:

Low starting wind speed, compact, light, beautiful and with little vibration.

Easy installation, flange connection, 30s can finish installation.

Enhanced Aluminum alloy spiral blades, spray-paint and oxidation treatment of the blades surface,

anti-corrosion, artistic and durable

Blades color can be customized to country flag, company logo and etc.

Permanent magnetic or maglev generator with special stator, effectively reduce torque to be only 1/3 of

ordinary generator for ensuring excellent performance.

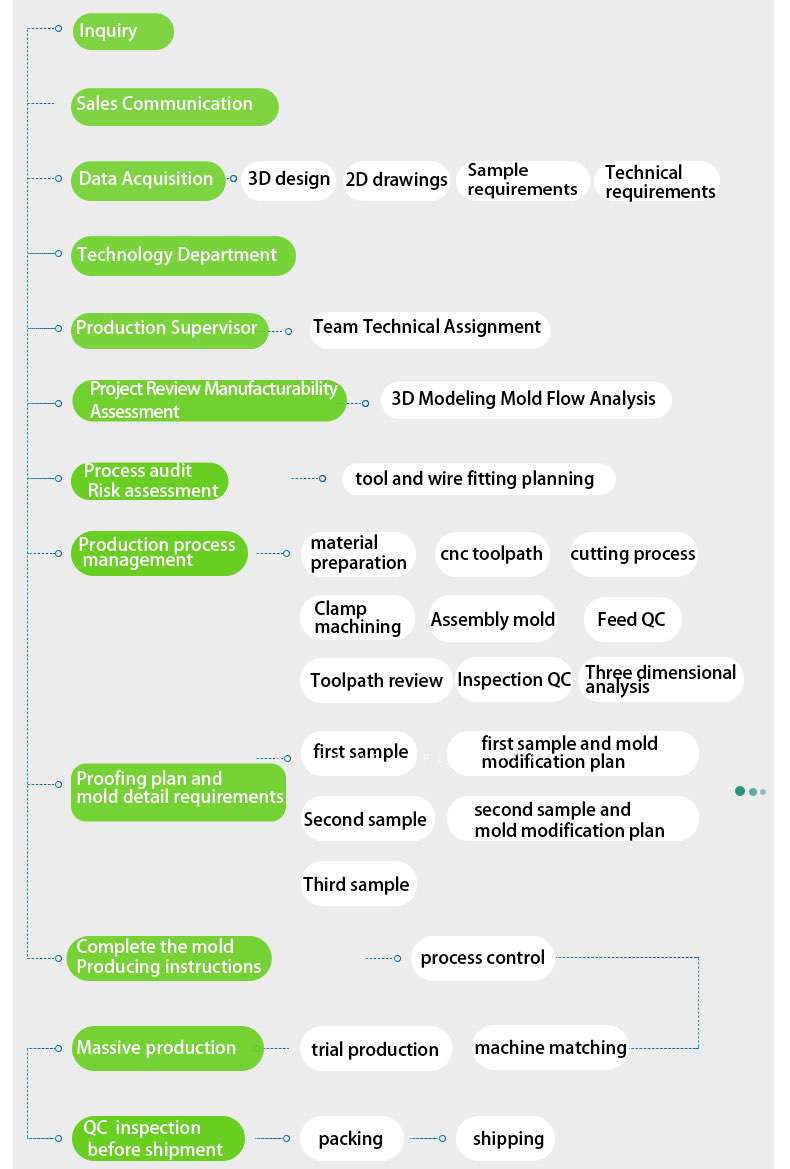

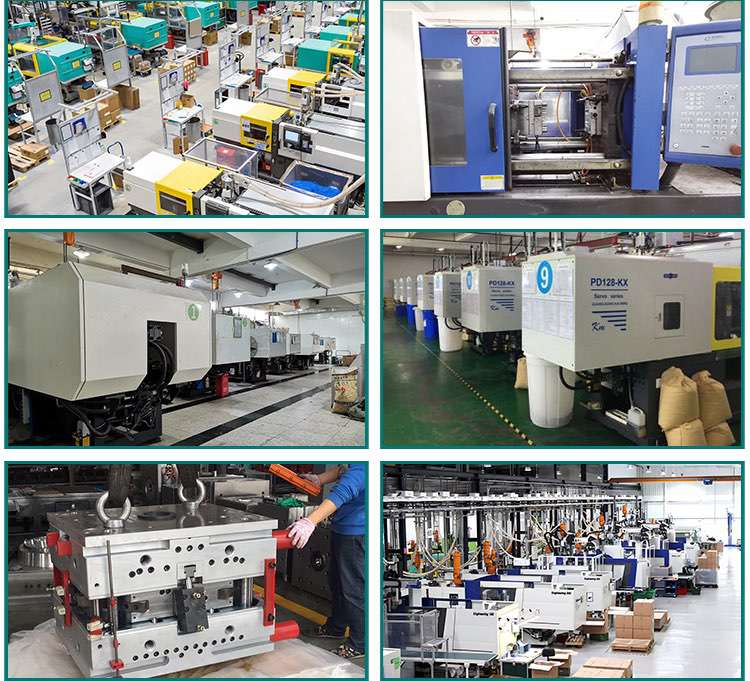

For injection molding, the products will be sent for 15 days. And we support OEM and ODM.
